Check the selected kit contents alongside; the photograph may show a different quantity.
Is this the right kit for your job?
Choose this kit when you want your own switch plate and a longer wireless link, without mains power at the transmitter. Walls and metal enclosures affect range.
See it in action
Watch the kit in action.
A typical application
Reach lights further from the switch position.

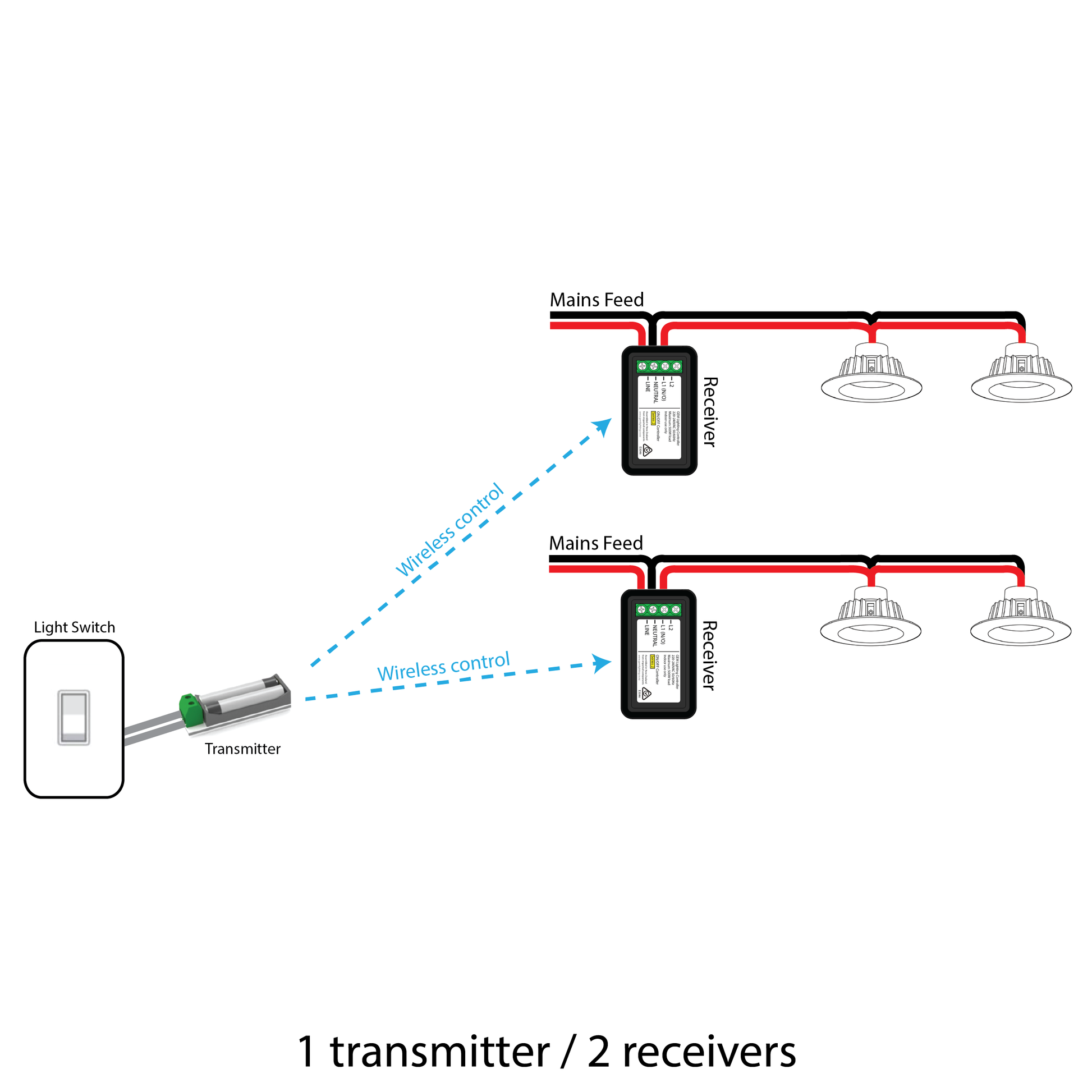

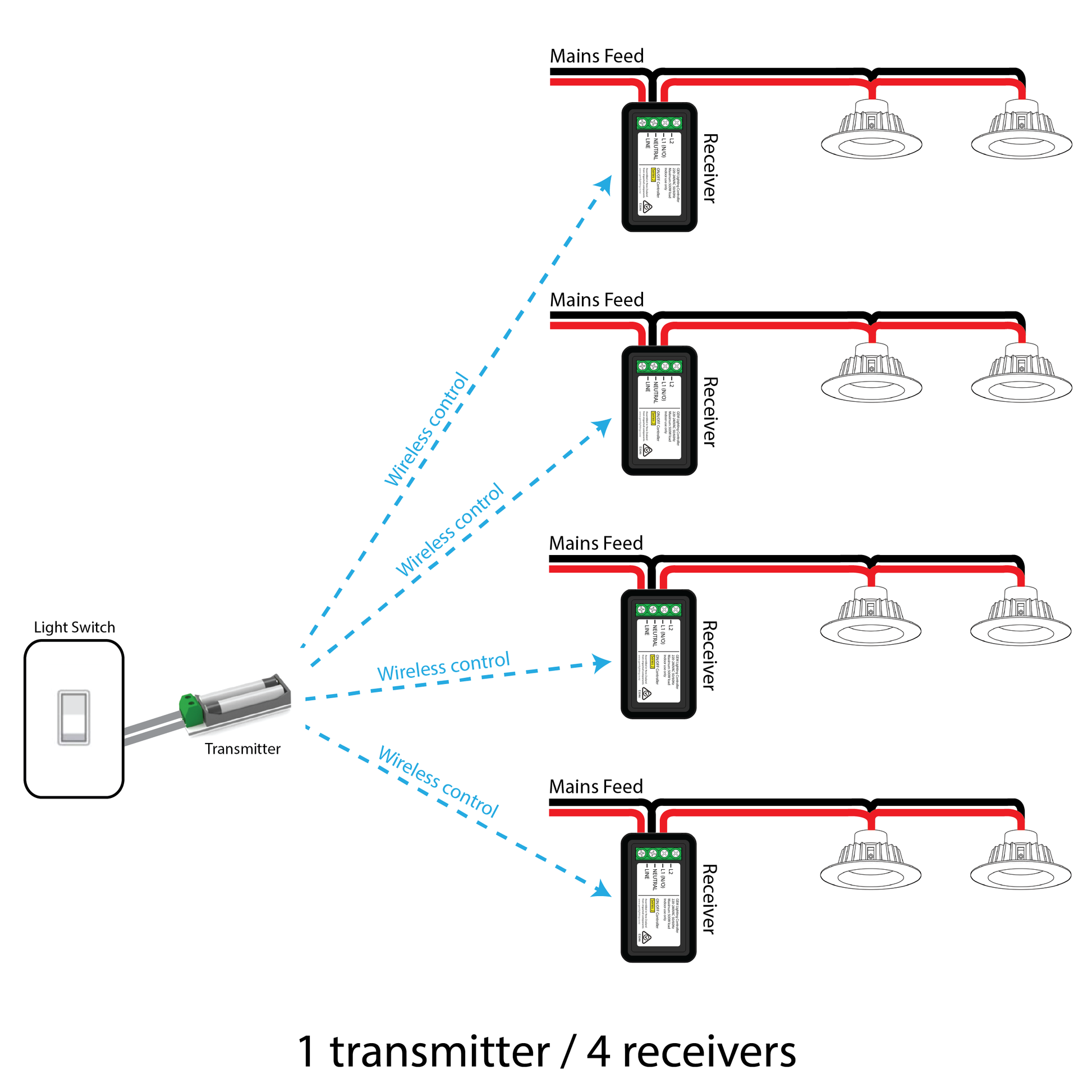

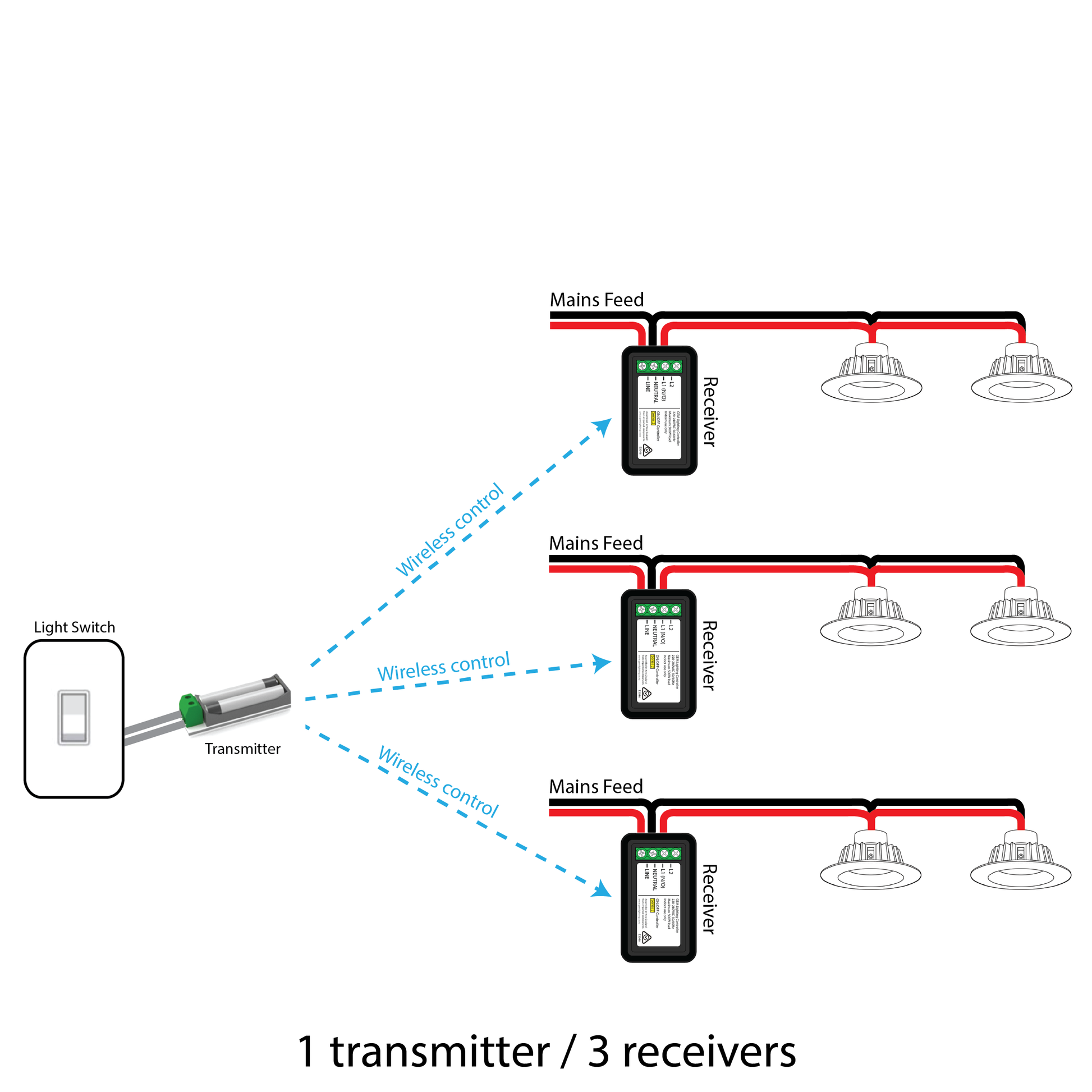

Use your preferred wall switch to control lighting across a larger building or out towards the garden. Each receiver switches its own load and needs power at that location.
Explore installation examples →Is this the right kit for your job?
Choose this kit when you want your own switch plate and a longer wireless link, without mains power at the transmitter. Walls and metal enclosures affect range.
Before you order
Check it suits the installation.
Check the available space and the load on each receiver. Walls and metal enclosures can reduce wireless range.
Ask us about your job →- Receiver supply
- 100-240VAC 50/60Hz
- Maximum load
- 6A
- Receiver dimensions
- 73mm x 43mm x 26mm
- Module dimensions
- 59mm x 20mm x 18mm
- Wireless range
- 300+ meters (915MHz)
- Battery life
- 5 years (AAAA)
Technical reference
Find the arrangement for your job.
Open the original diagram at full size to read the connections and notes.
Full product information and installation notes
What it is:
A simple kit that lets you control your lights wirelessly without complex installation. Keep the same style as your existing switches - no drilling or complicated wiring needed. Using long range RF technology, it works at distances over 300 meters.
How it works:
When the battery-powered switch module senses a change in the attached switch, it transmits to the receiver to switch the lights (see the video).
Quick specs:
| Receiver supply | 100-240VAC 50/60Hz |
| Maximum load | 6A |
| Receiver dimensions | 73mm x 43mm x 26mm |
| Module dimensions | 59mm x 20mm x 18mm |
| Wireless range | 300+ meters (915MHz) |
| Battery life | 5 years (AAAA) |

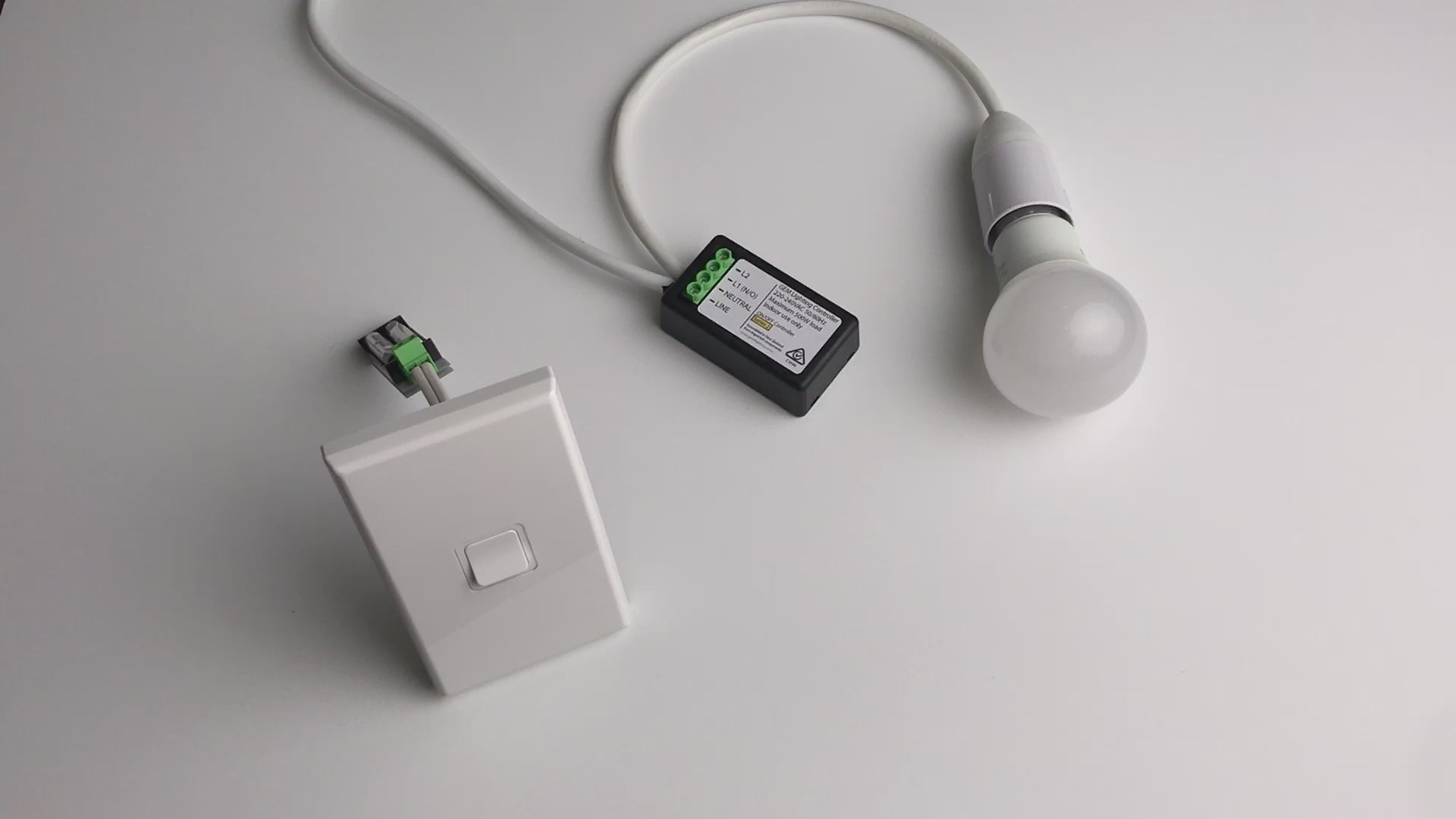

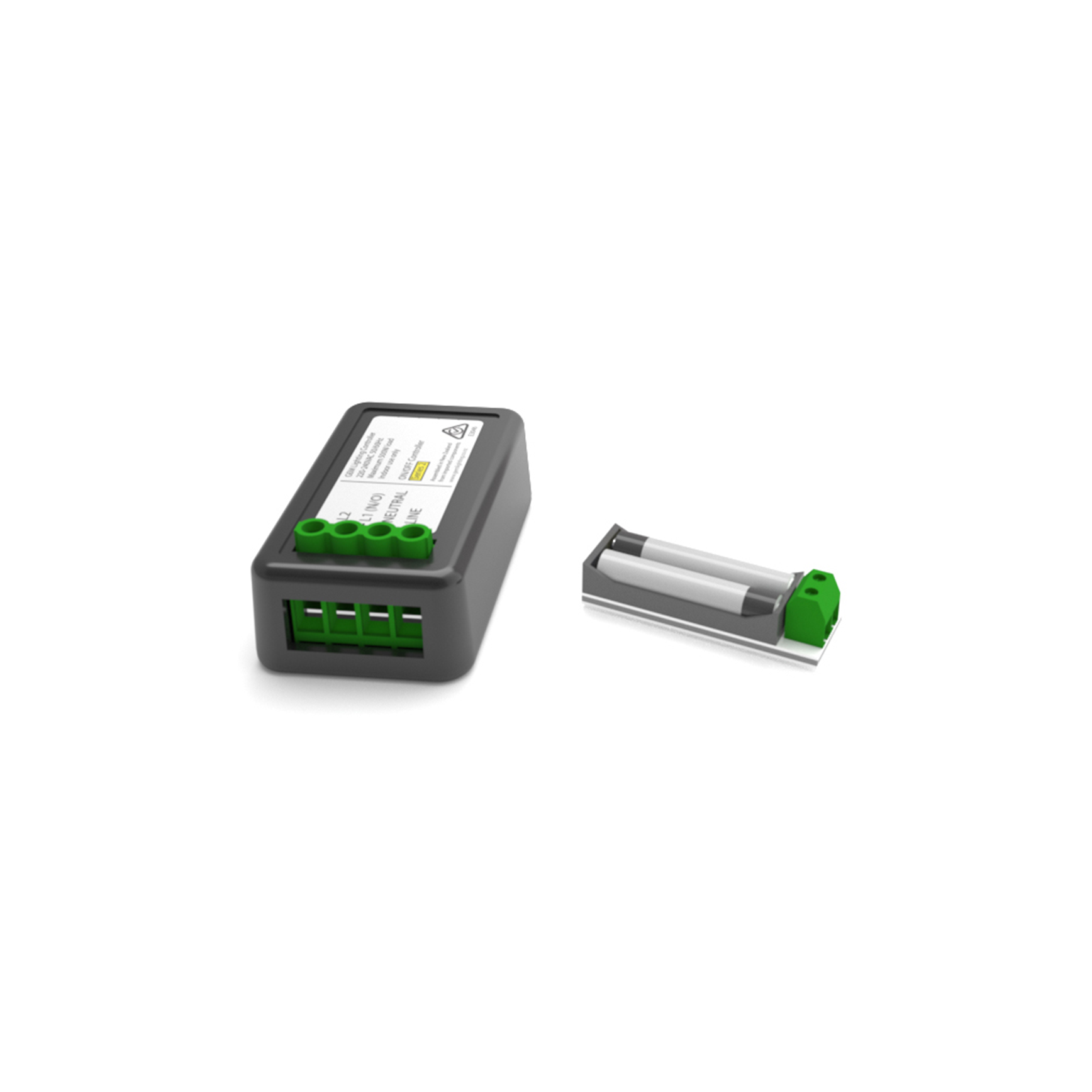

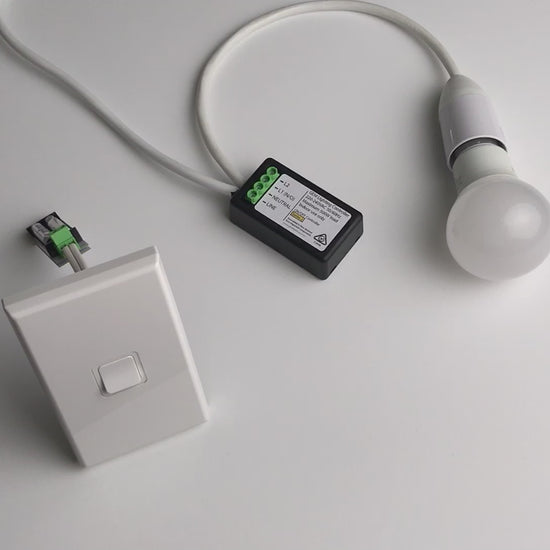

Inside the box, you will find:

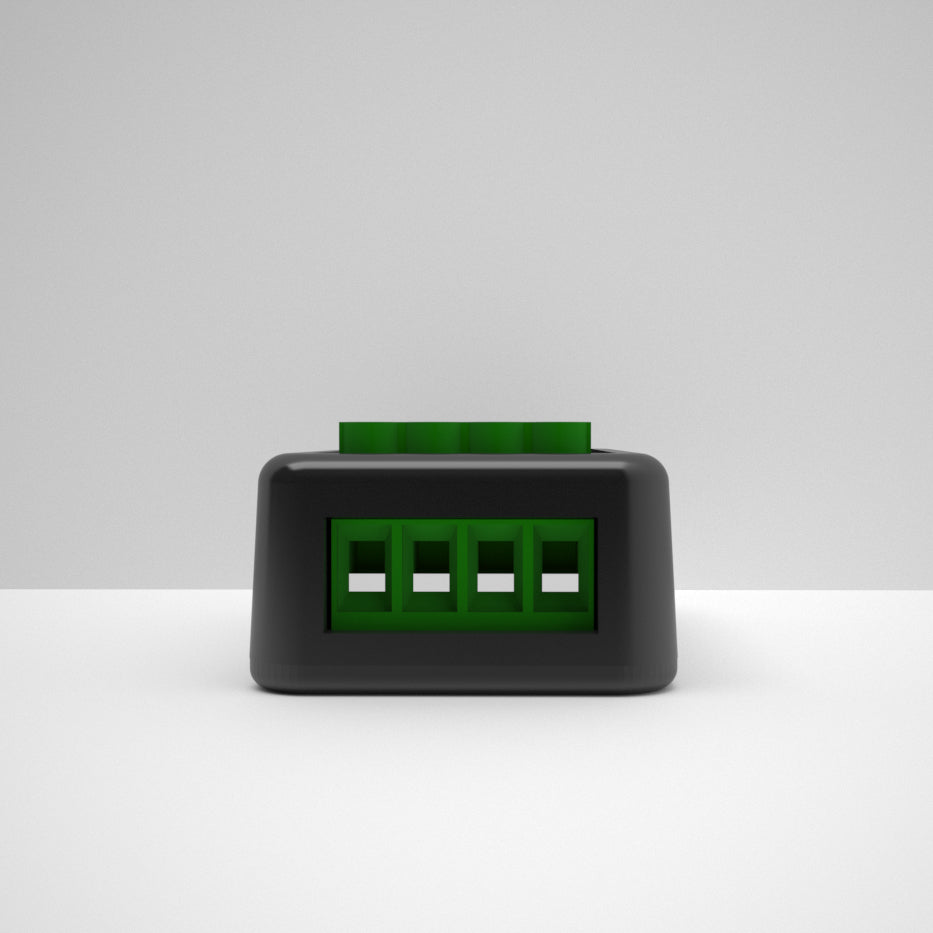

- Long Range Wireless Receiver with integrated relay.
- Long Range Wireless Switch Modules including AAAA batteries.
- A Wiring Guide and Installation Instructions.
Installation options:

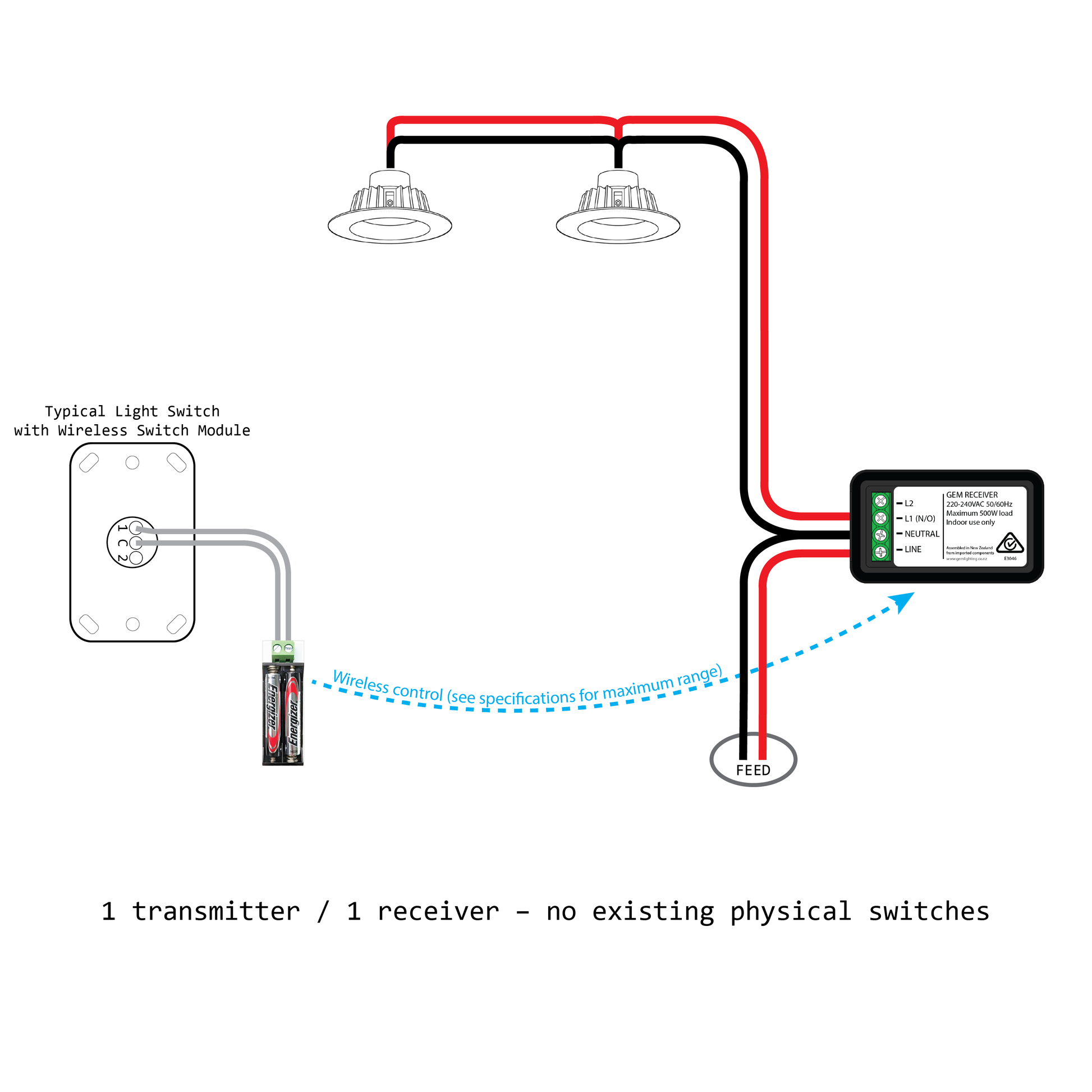

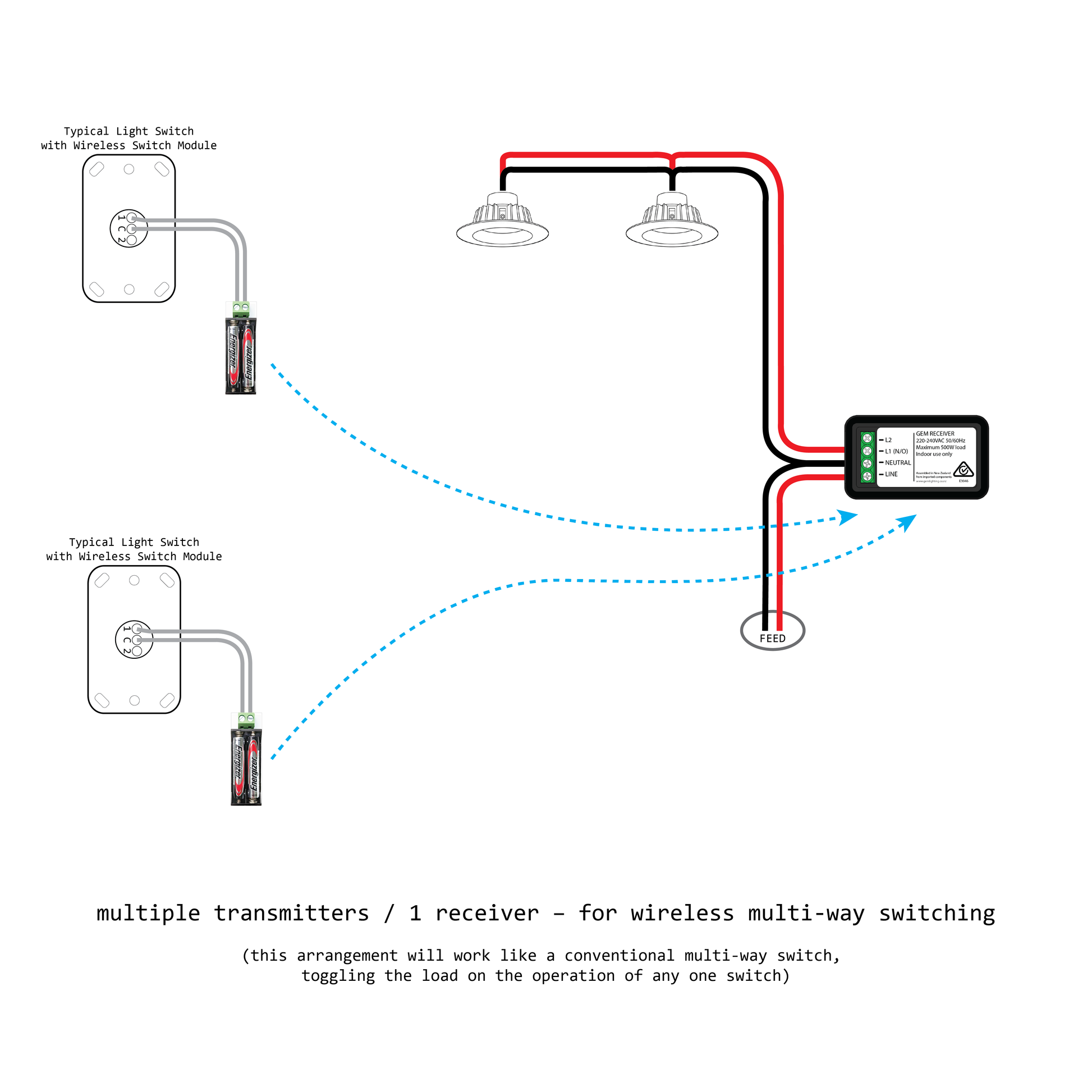

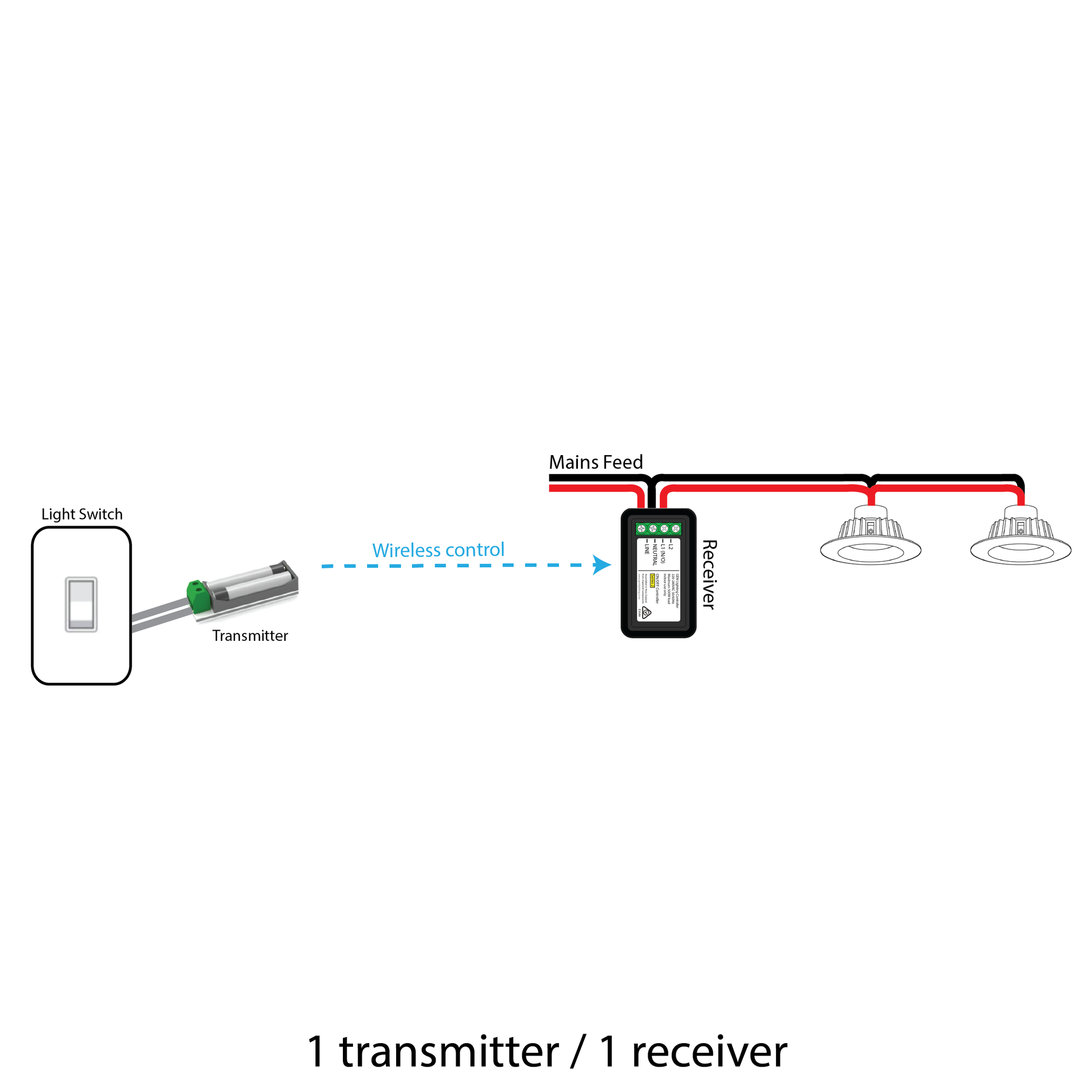

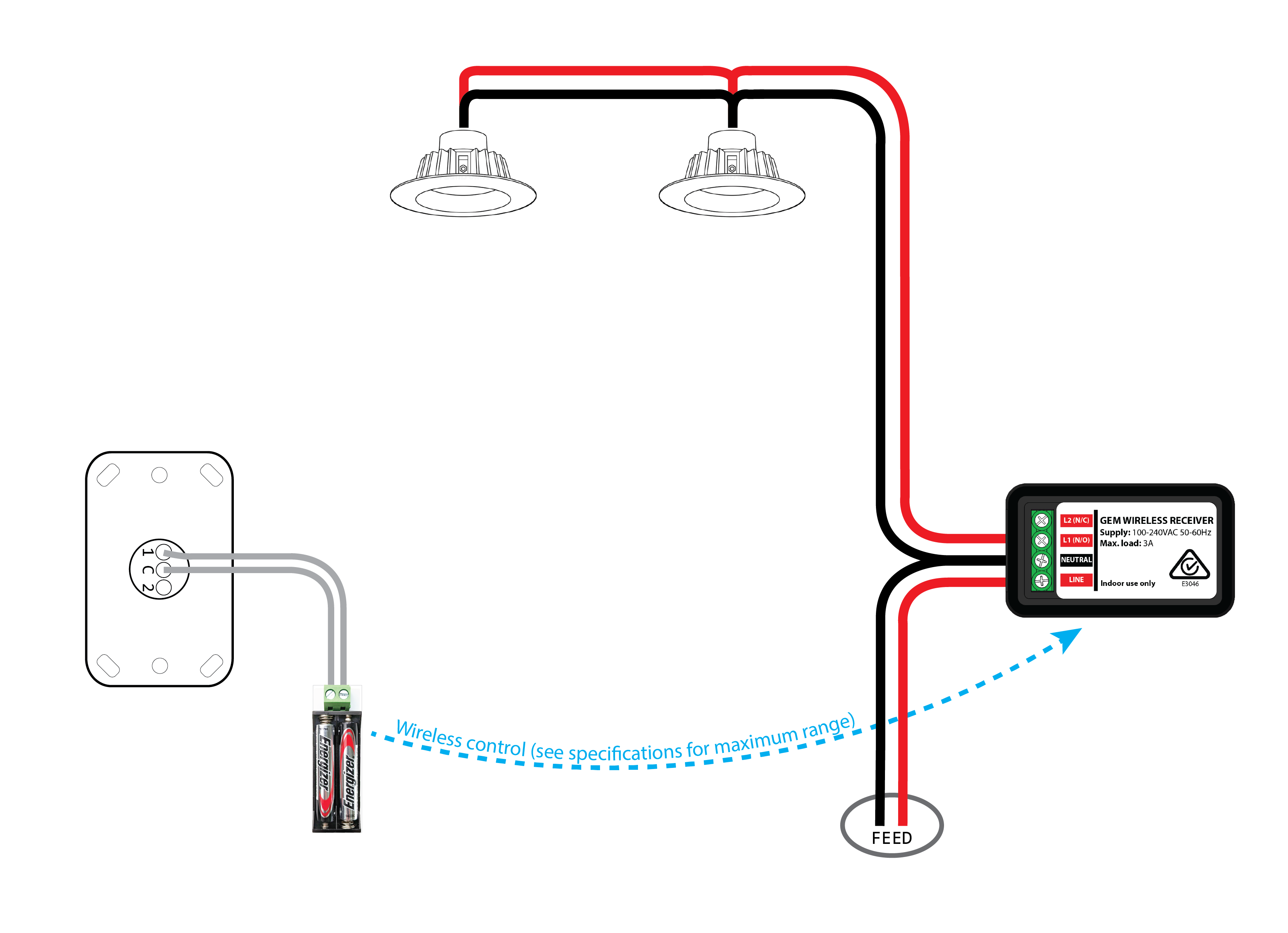

- Standalone setup: Connect the receiver directly to your lights to use wireless switches only.

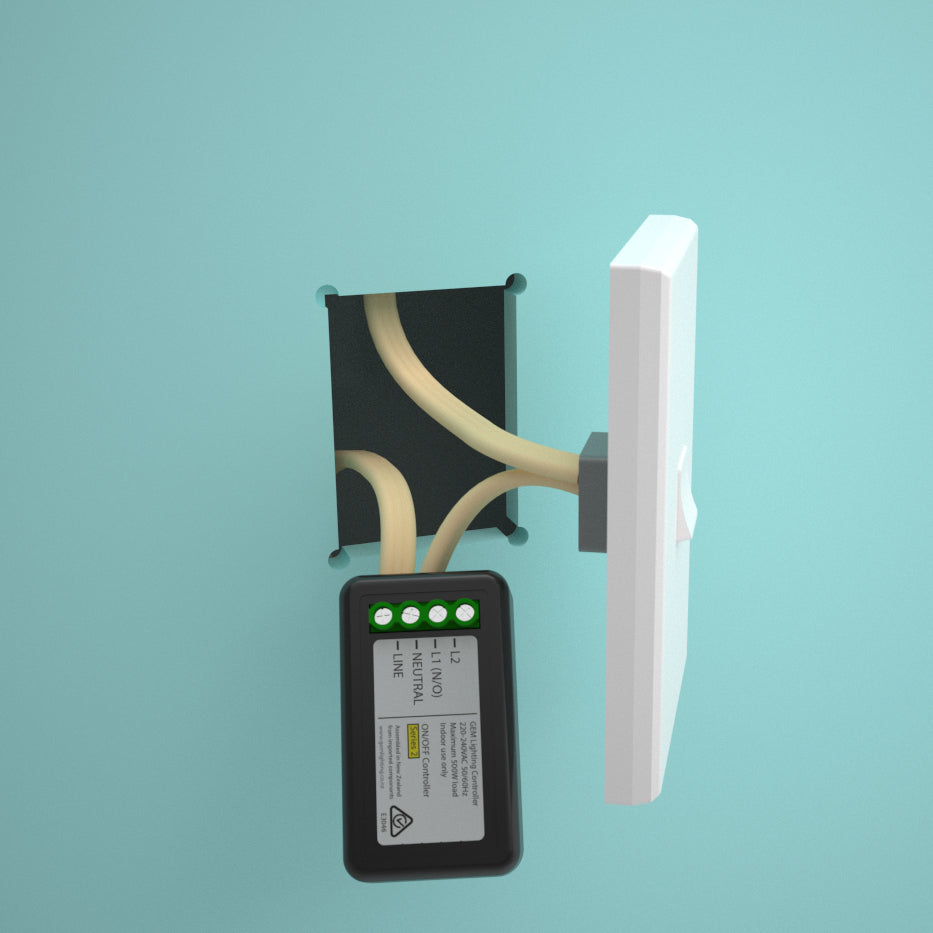

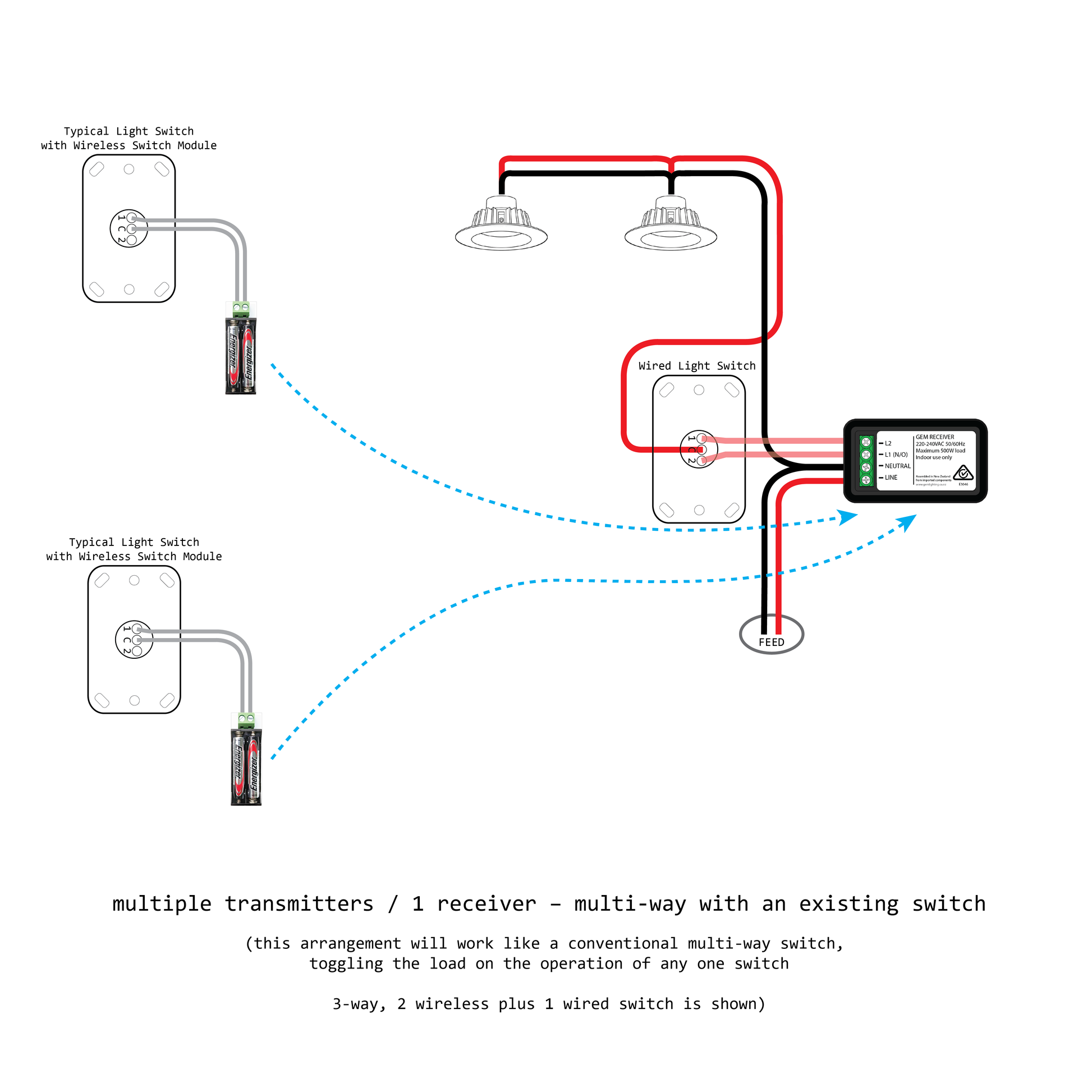

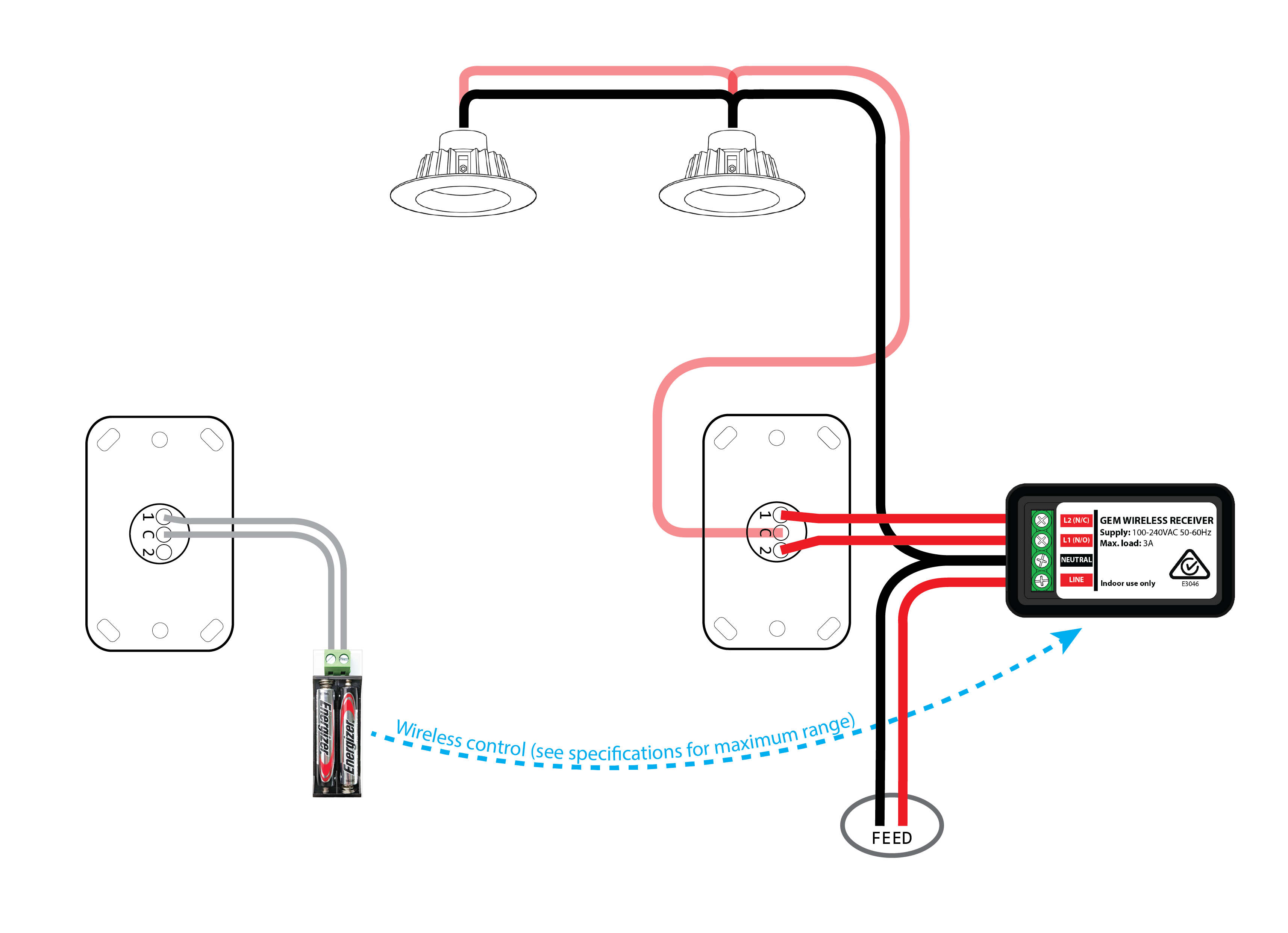

- Add on to an existing switch: Connect the receiver to your current switch to use both the physical switch and wireless switch in a 2-way arrangement.

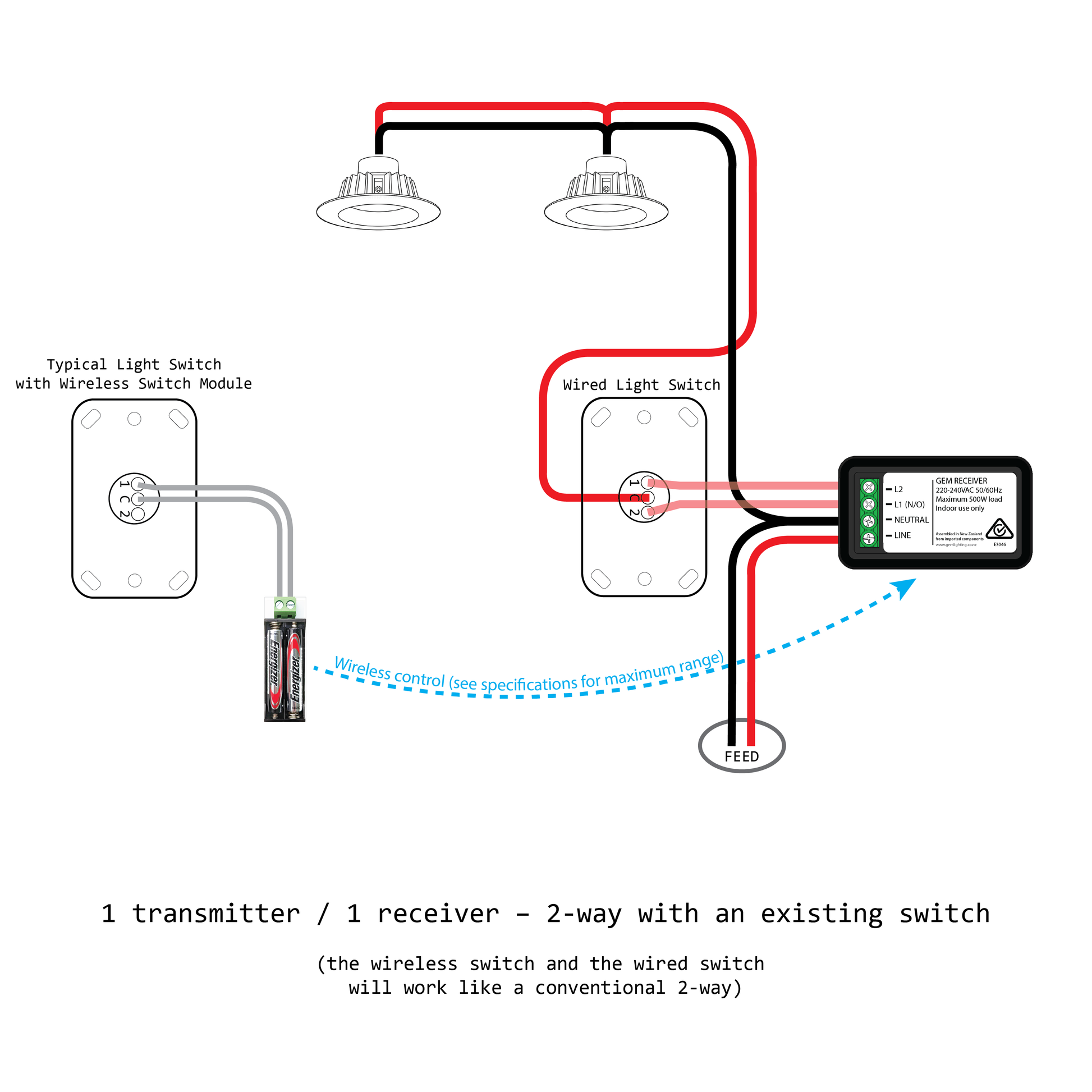

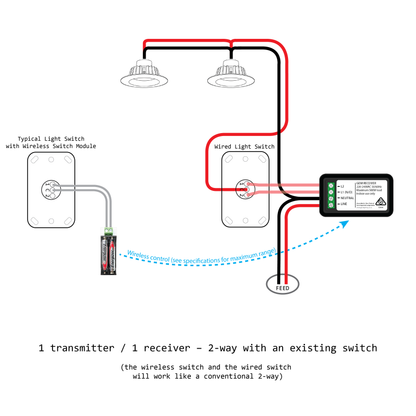

Quick tip: Already have a light switch? You only need the 1-transmitter kit to add another switch location for a 2-way setup. View the wiring diagram here.
Key features:
- No WiFi needed.
- Switch and receiver come pre-paired.

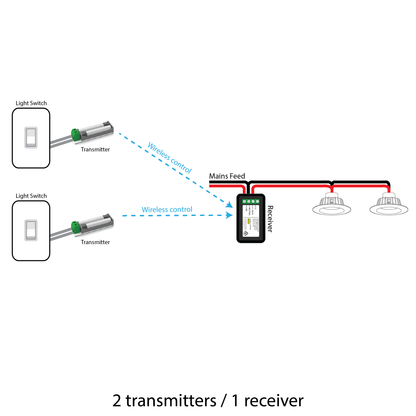

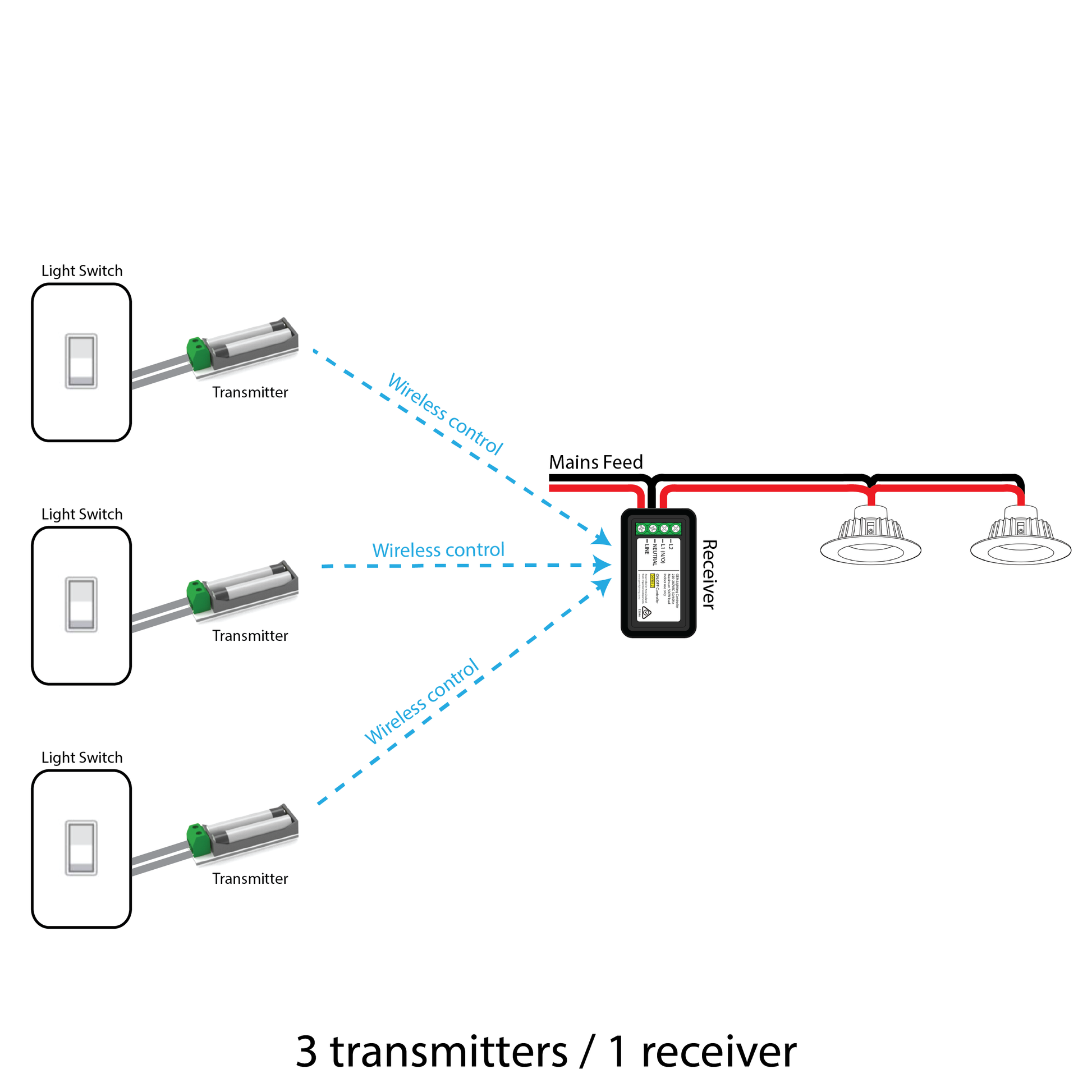

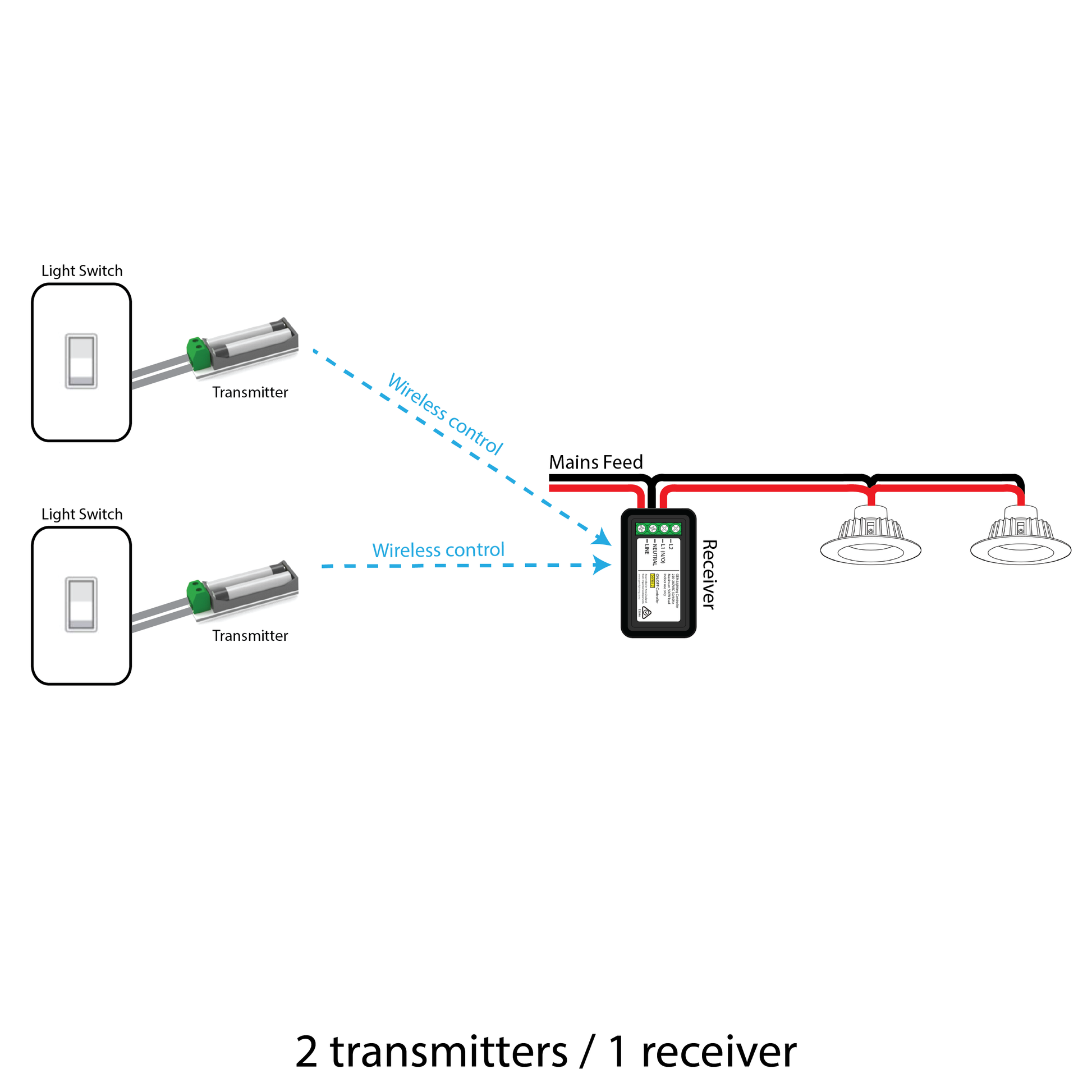

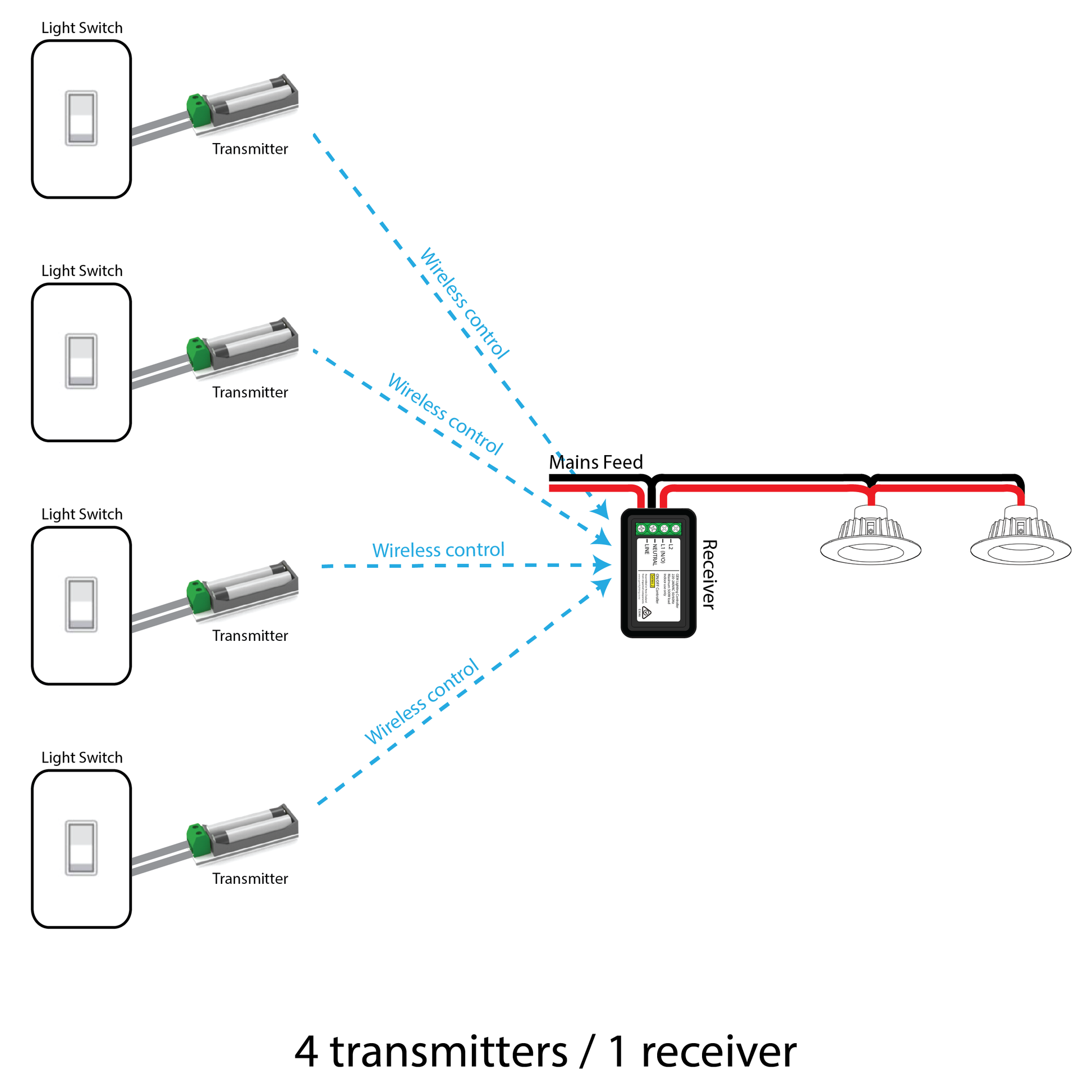

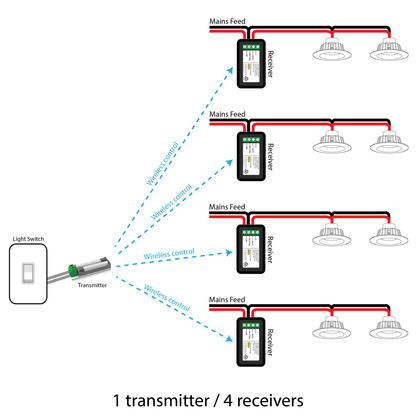

- Order multiple transmitters to switch lights from different locations.
- Signal works over 300 meters range through walls and obstacles.
- Use multiple kits in the same location without interference.
- Long battery life (5 years).
- Reliable connection with no interference from other wireless devices.
Tips for best use:
- Contactors and relays with AC coils can emit electromagnetic noise. If you intend to use such equipment nearby, ensure that there is at least 600mm separation from the receiver.
- Ambient temperature maximum is 45°C. Avoid enclosing the receiver with sources of heat like drivers, transformers, or luminaires.
- Metal casings can reduce the wireless range. Where possible, avoid using metal enclosures to house the units.
- Need to control gates or other momentary pulse loads? Contact our support team and we'll provide a special version designed for this purpose.
The GEM Switch Module Kit - Long Range is designed and assembled in New Zealand. The product complies with the relevant AS/NZS standards and is fit for sale in Australia and New Zealand. All GEM products have a 2 year replacement warranty.
