Check the selected kit contents alongside; the photograph may show a different quantity.
Is this the right kit for your job?
Choose this kit when you want a complete switch that mounts on the wall, with no wiring at the new switch position. The receiver needs mains power.
See it in action
Watch the kit in action.
A typical application

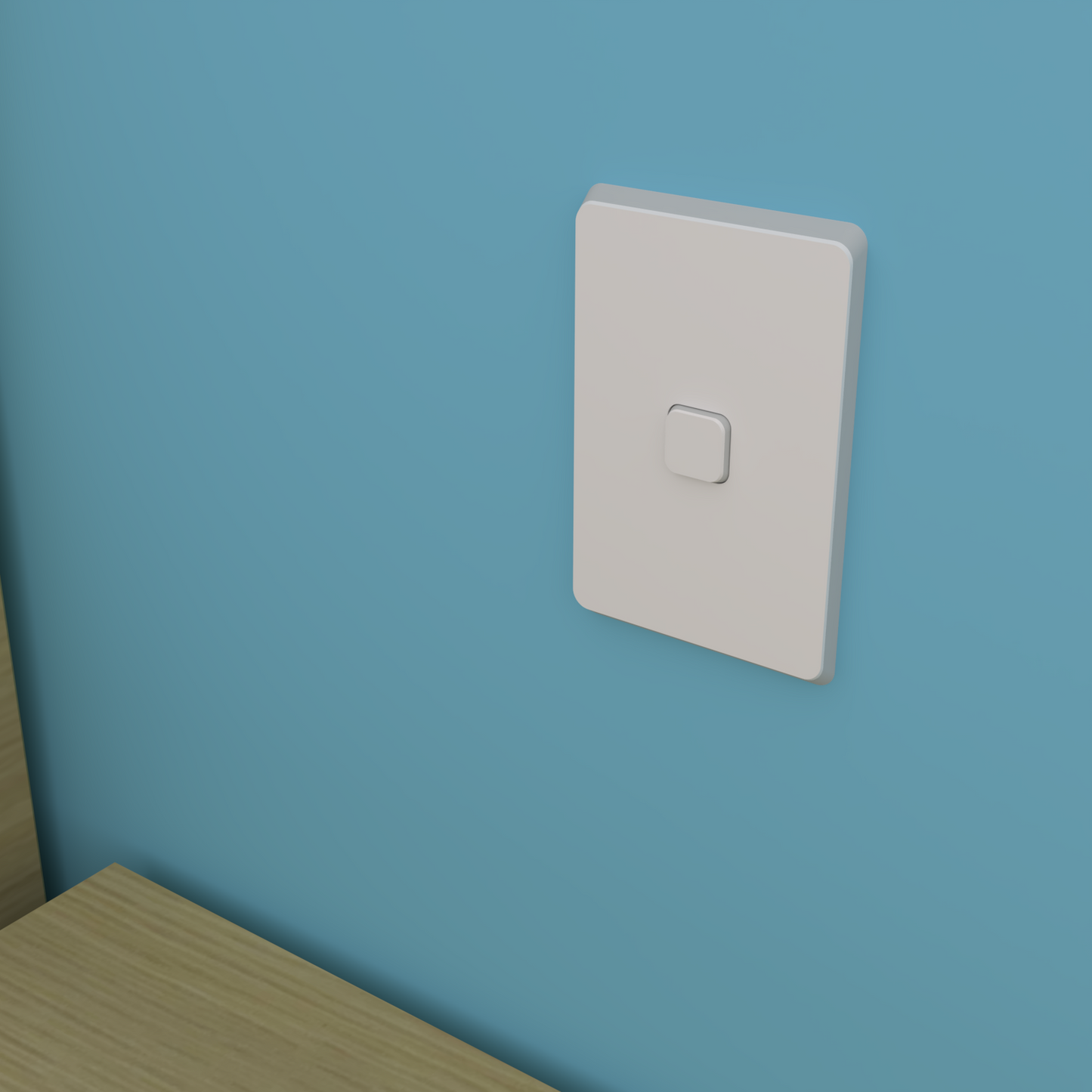

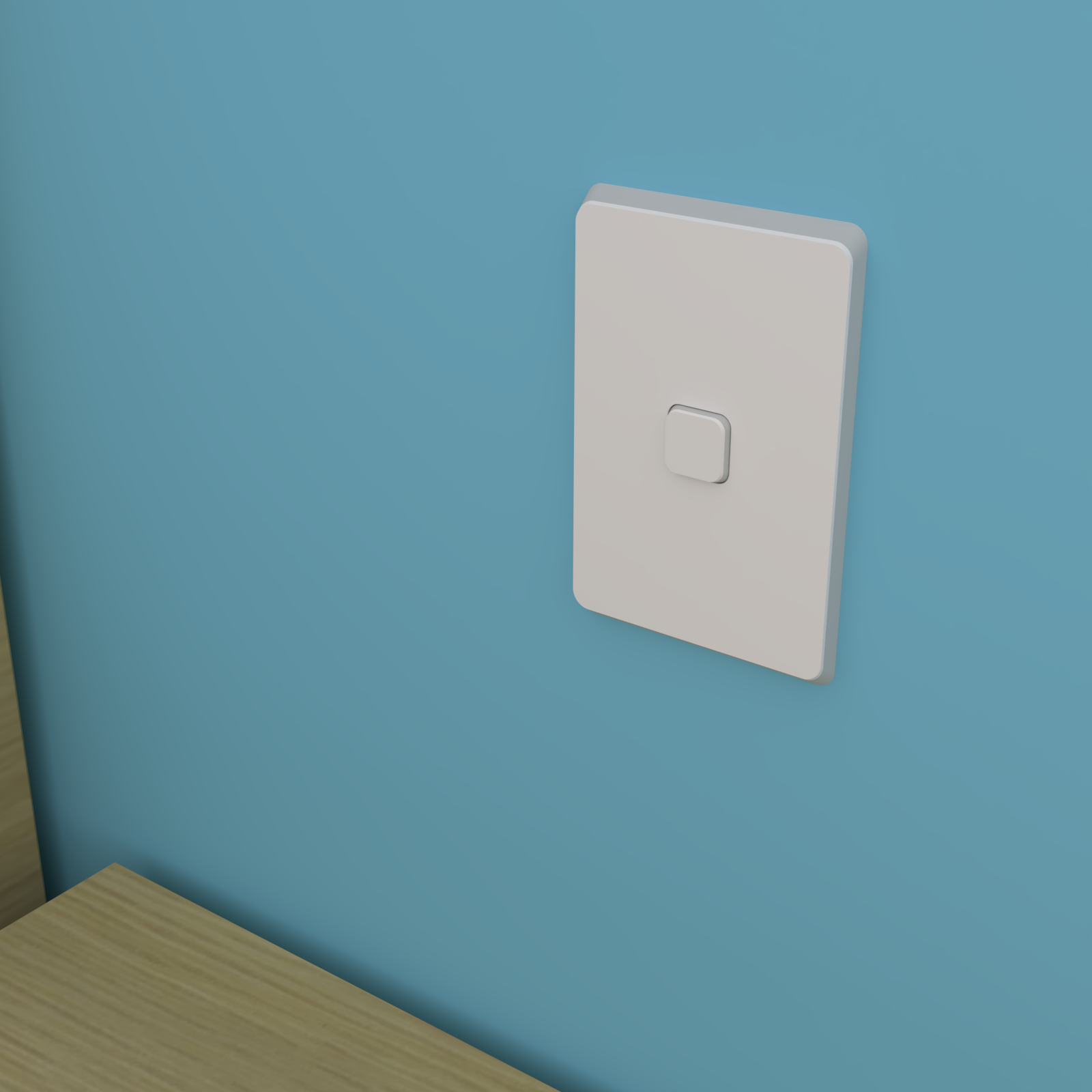

Add bedside control and keep the switch by the door.

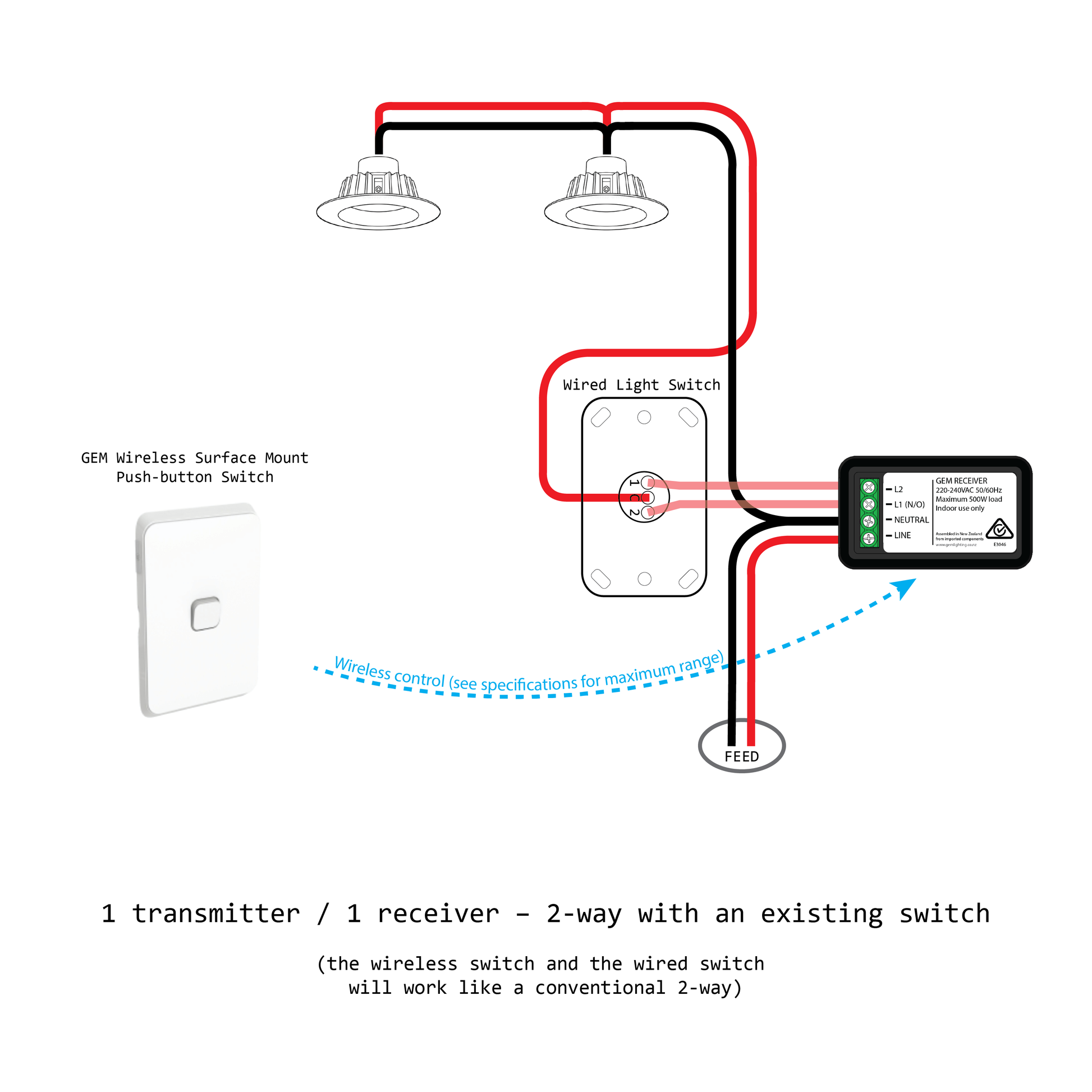

Connect the receiver with the existing wired switch to give two-way control of the same lights. One wireless switch adds a new control point beside the bed, while the original switch still works.
Explore installation examples →Is this the right kit for your job?
Choose this kit when you want a complete switch that mounts on the wall, with no wiring at the new switch position. The receiver needs mains power.
Before you order
Check it suits the installation.
Check the available space and the load on each receiver. Walls and metal enclosures can reduce wireless range.
Ask us about your job →- Receiver supply
- 100-240VAC 50/60Hz
- Maximum load
- 6A
- Receiver dimensions
- 73mm x 43mm x 26mm
- Switch dimensions
- 120mm x 78mm x 10mm
- Wireless range
- 15 meters (915 MHz)
- Battery life
- 5-6 years (CR2032)
Technical reference
Find the arrangement for your job.
Open the original diagram at full size to read the connections and notes.
Full product information and installation notes
What it is:

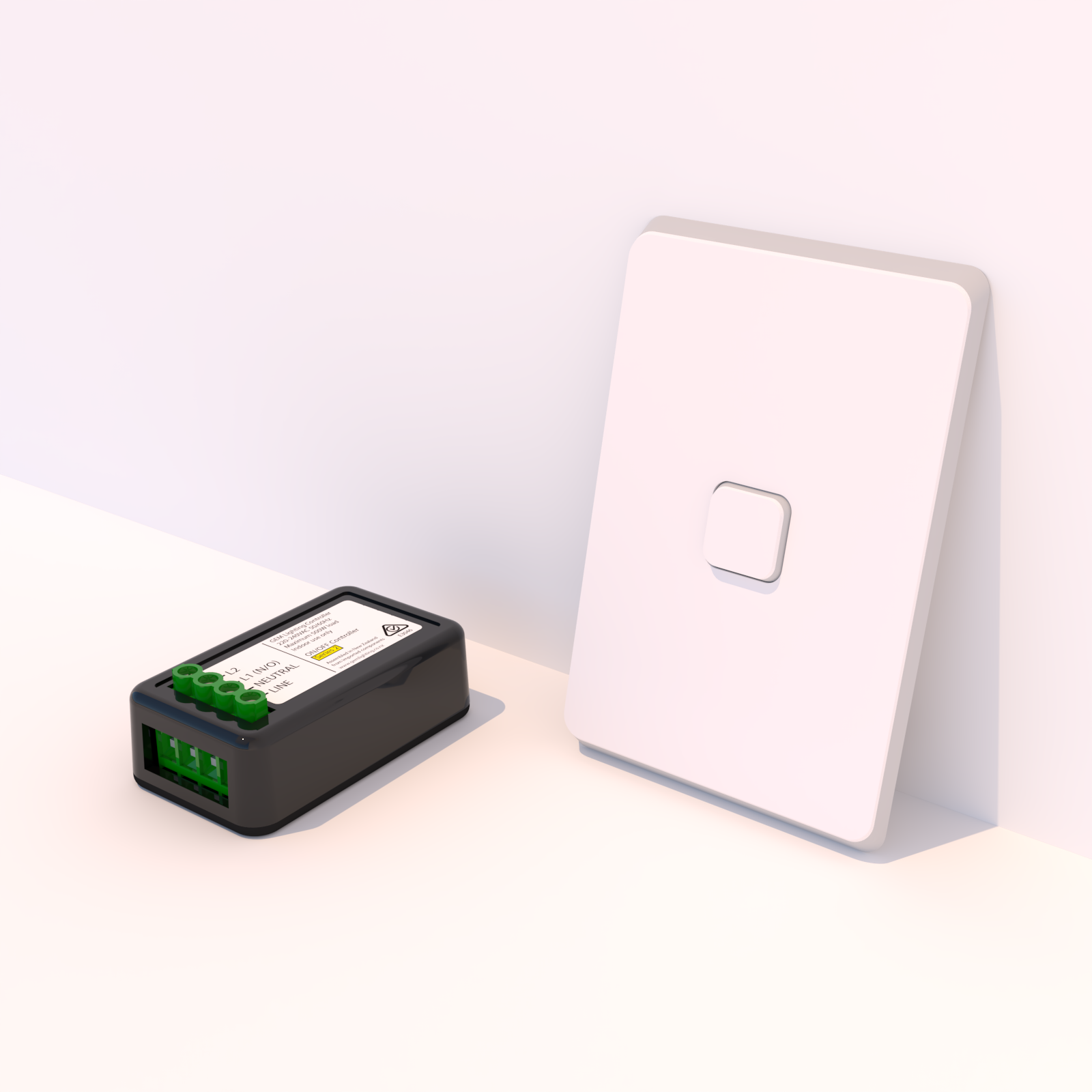

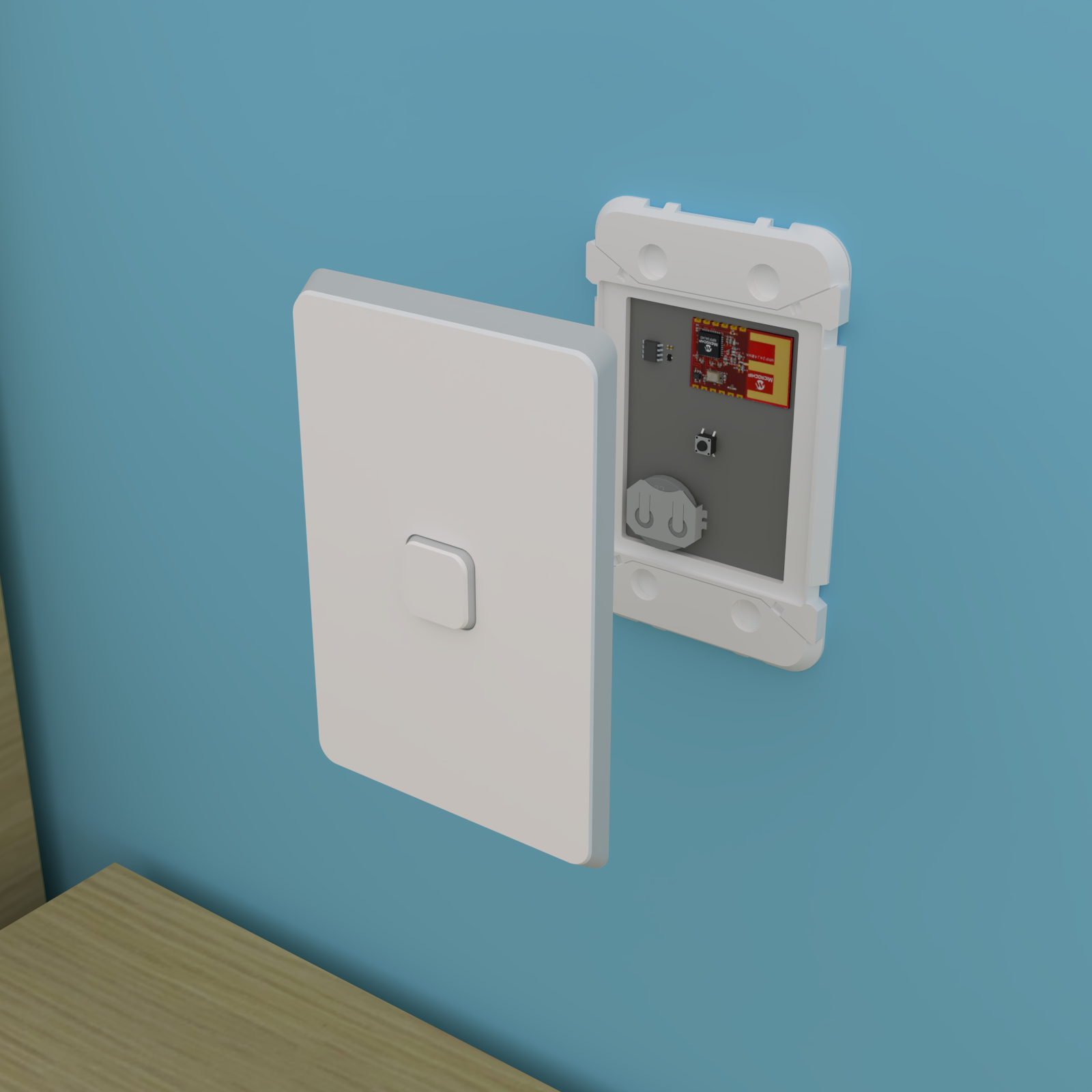

A kit containing a ready-to-mount wireless push-button switch that matches AU/NZ switch styles, and a mains powered receiver. Mount the switch anywhere without cutting into walls - no wiring needed at the switch location.
How it works:
The wireless push-button switch transmits to the receiver to toggle the lights on every press (see the video).
Quick specs:
| Receiver supply | 100-240VAC 50/60Hz |
| Maximum load | 6A |
| Receiver dimensions | 73mm x 43mm x 26mm |
| Switch dimensions | 120mm x 78mm x 10mm |
| Wireless range | 15 meters (915 MHz) |
| Battery life | 5-6 years (CR2032) |

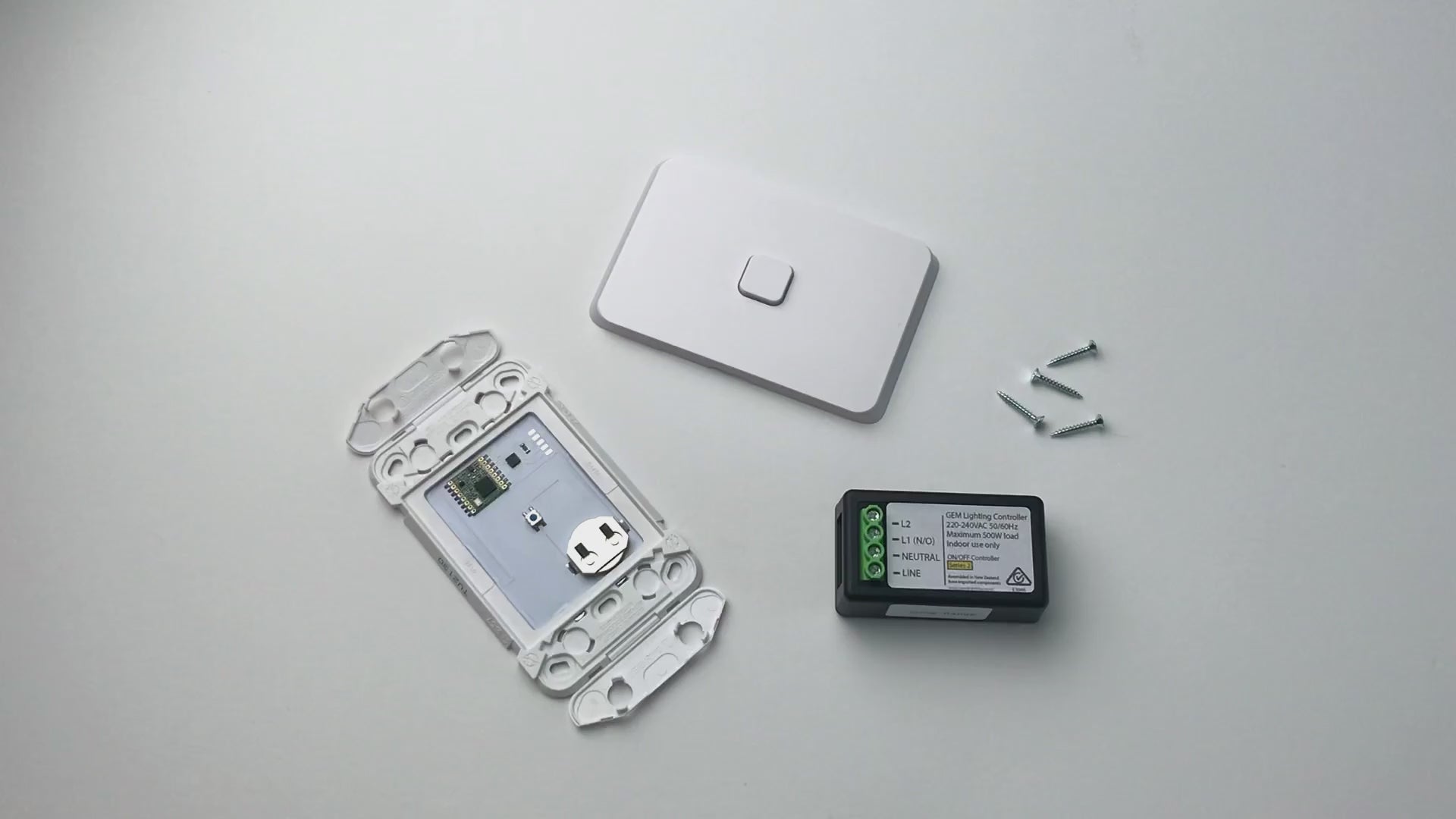

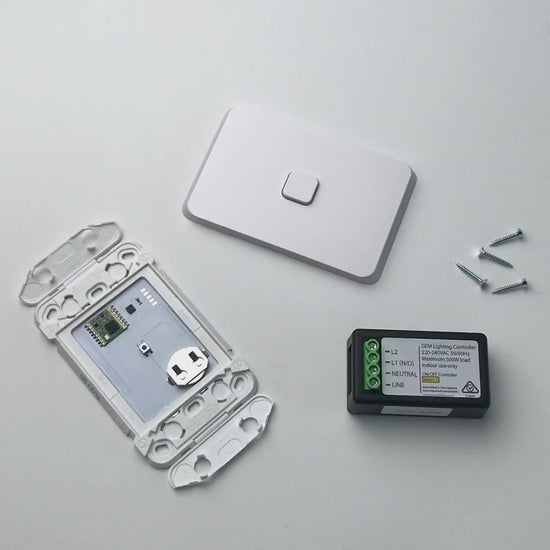

Inside the box, you will find:

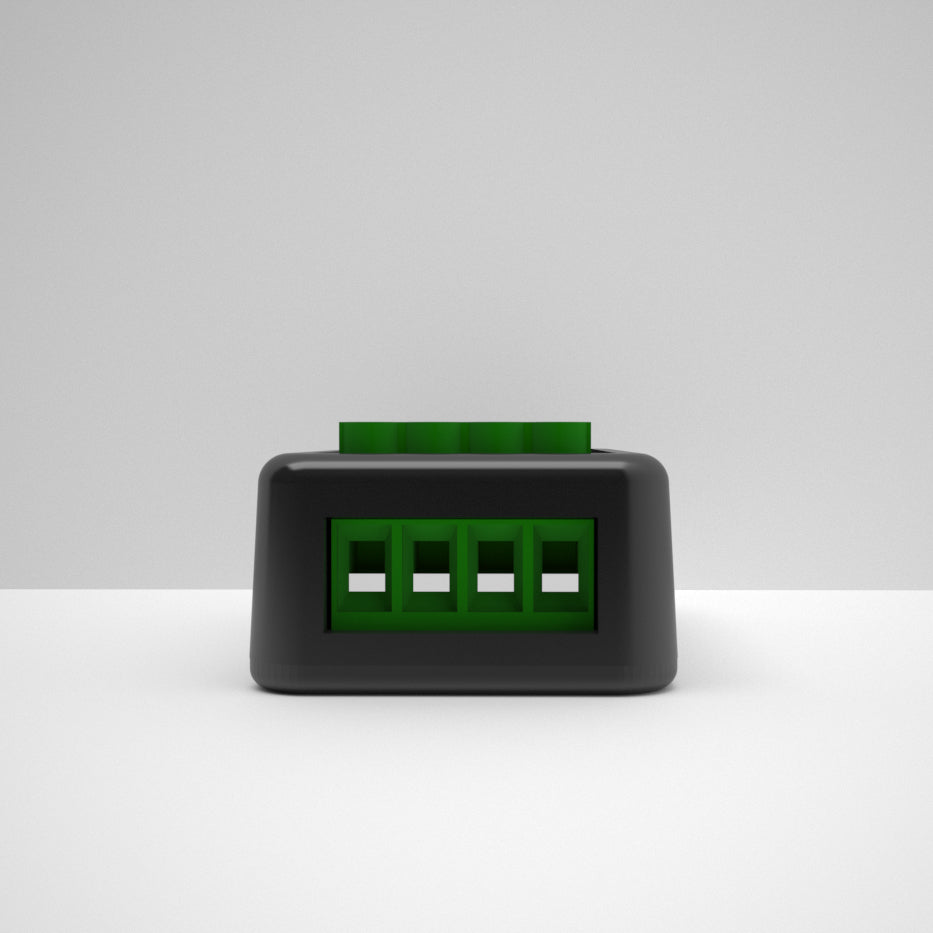

- Wireless Receiver with integrated relay.

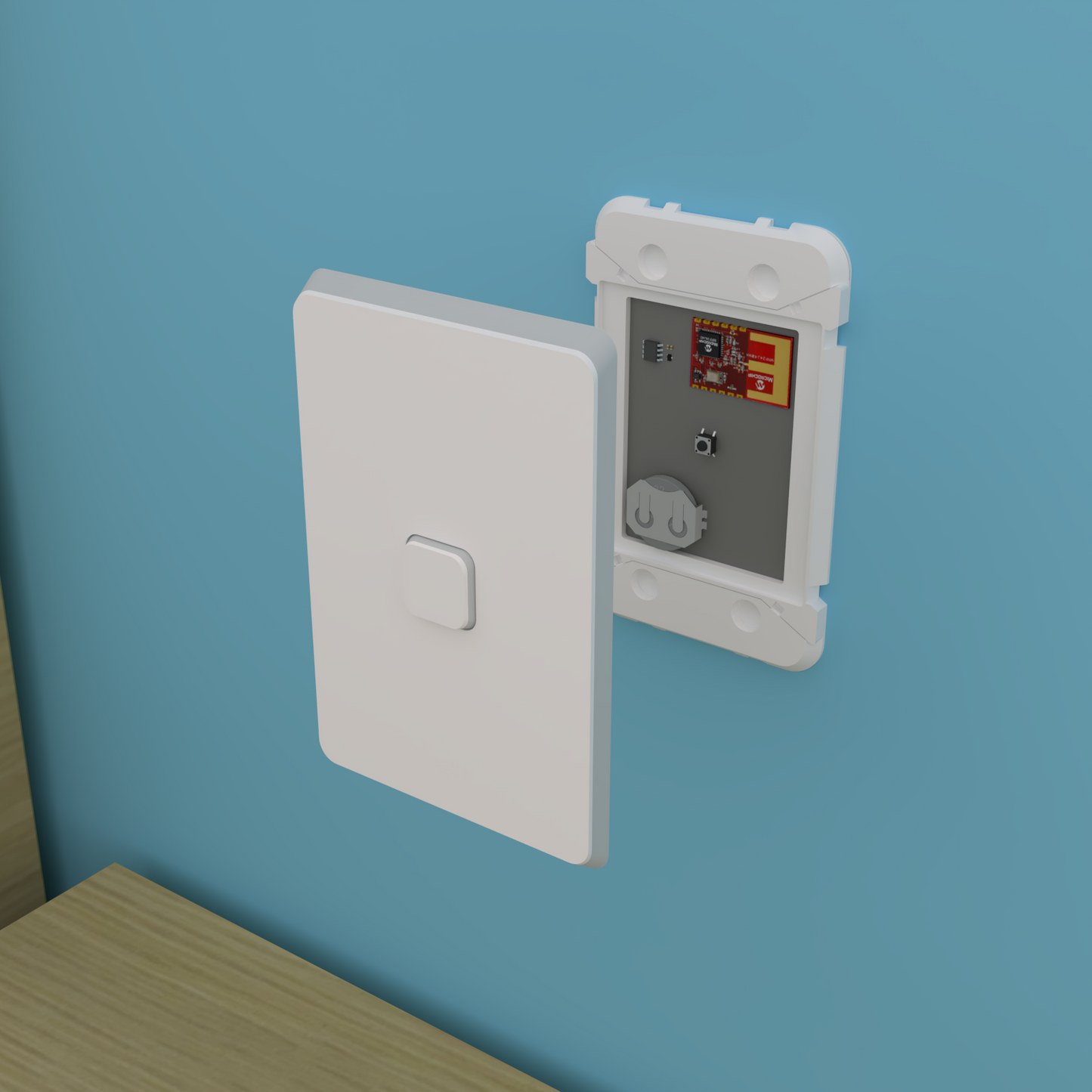

- Wireless Surface Mounted Switch including battery.
- A Wiring Guide and Installation Instructions.
Installation options:

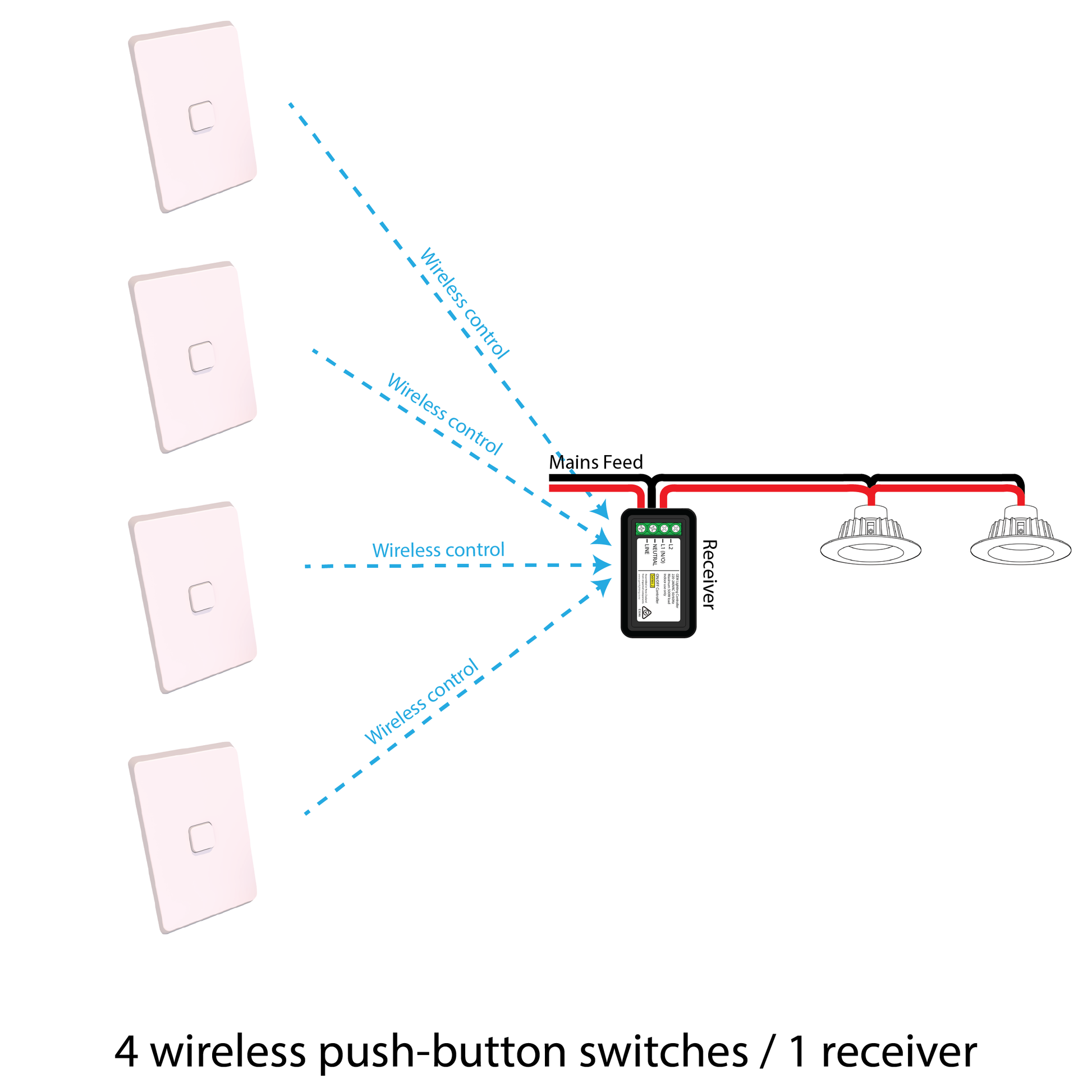

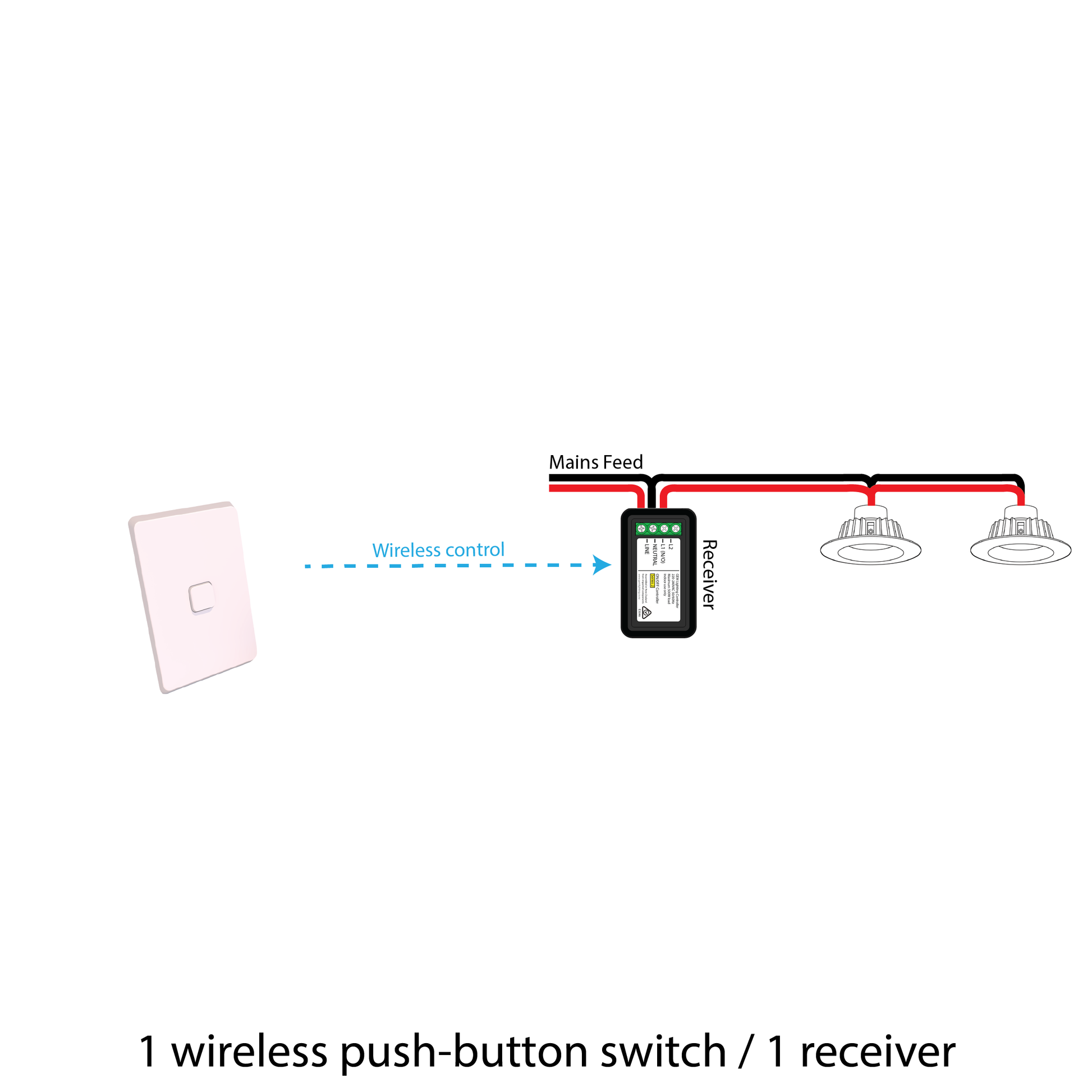

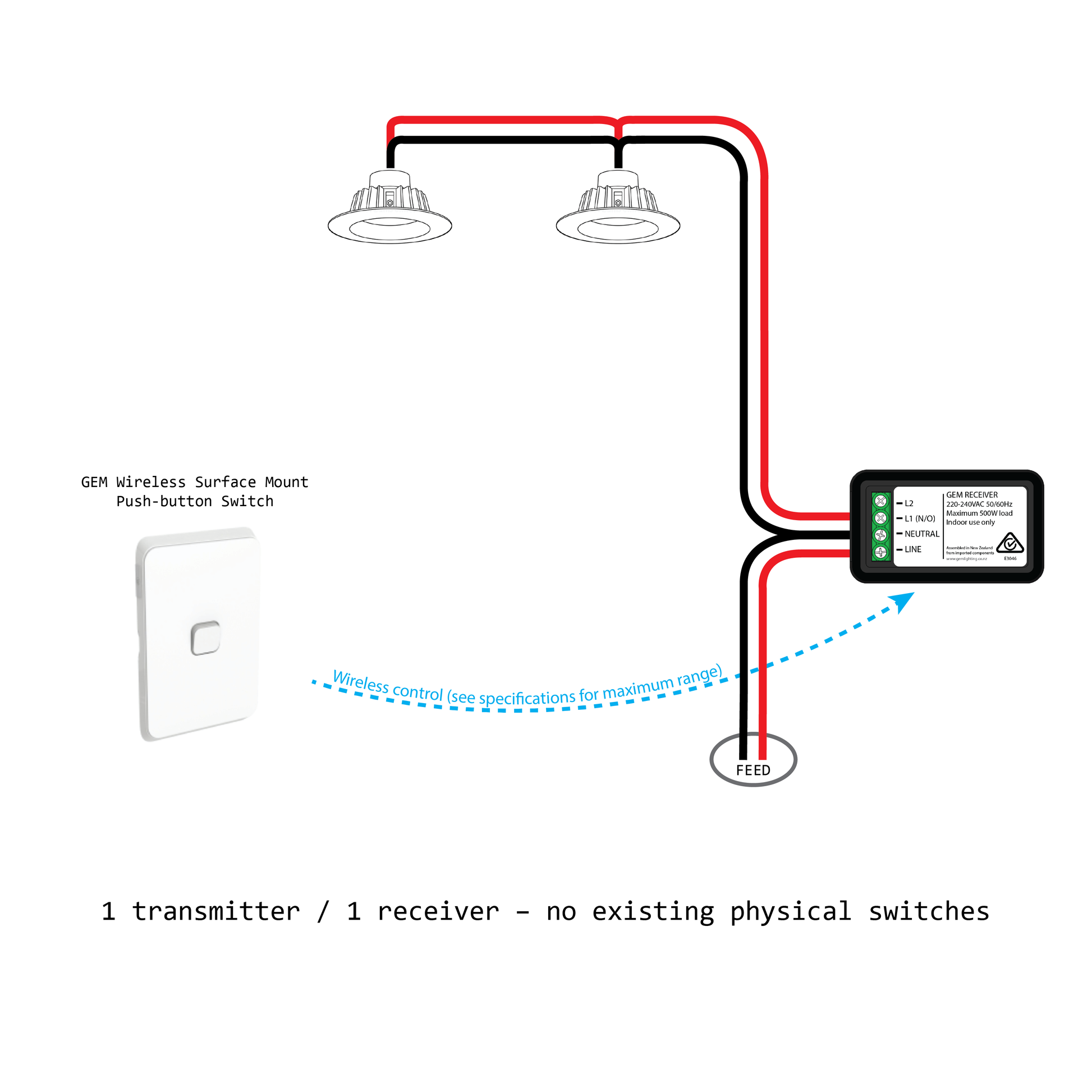

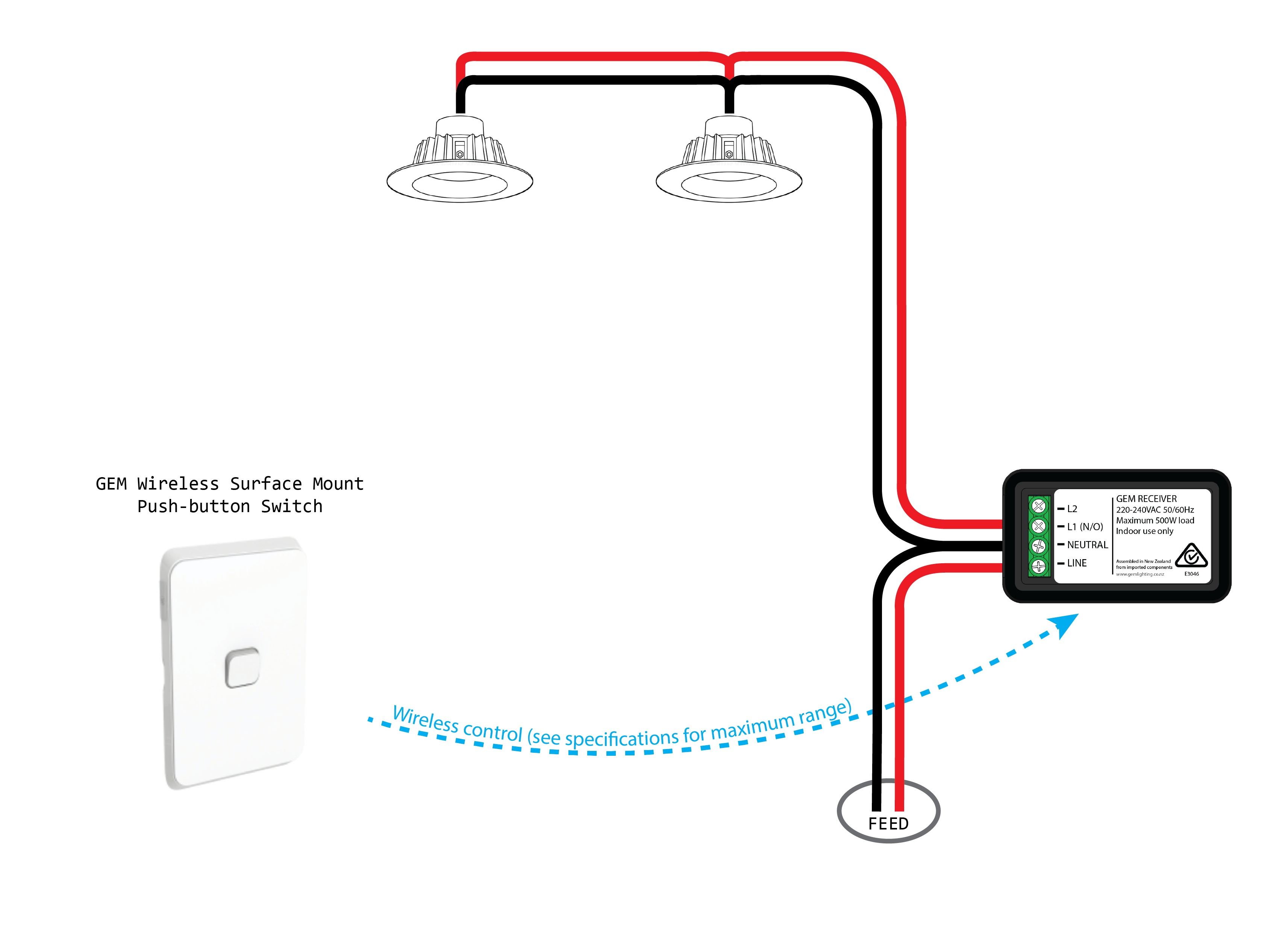

- Standalone setup: Connect the receiver directly to your lights to use wireless switches only.

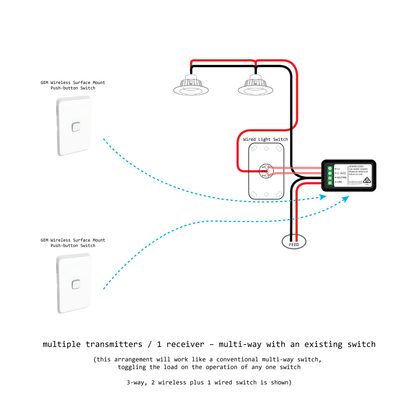

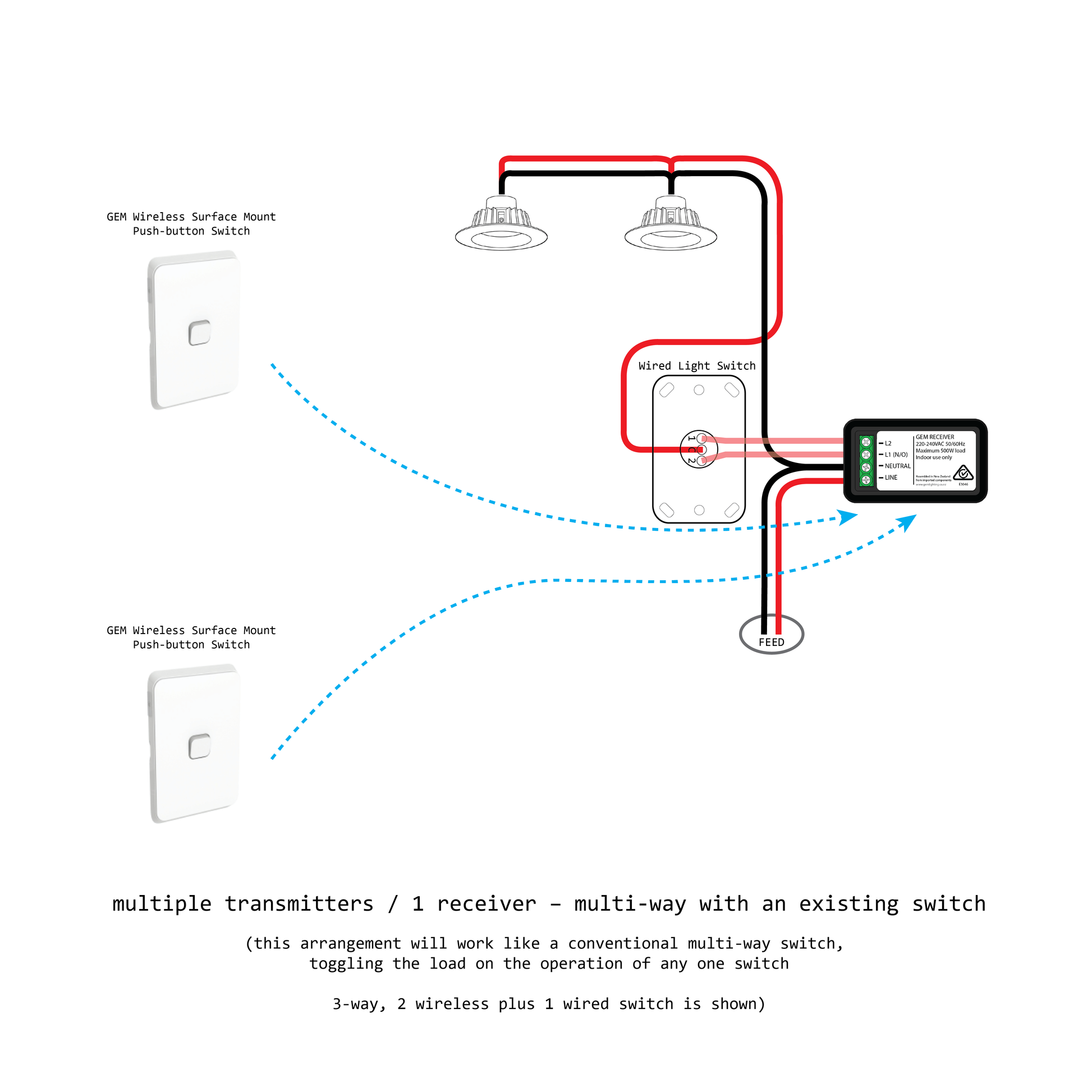

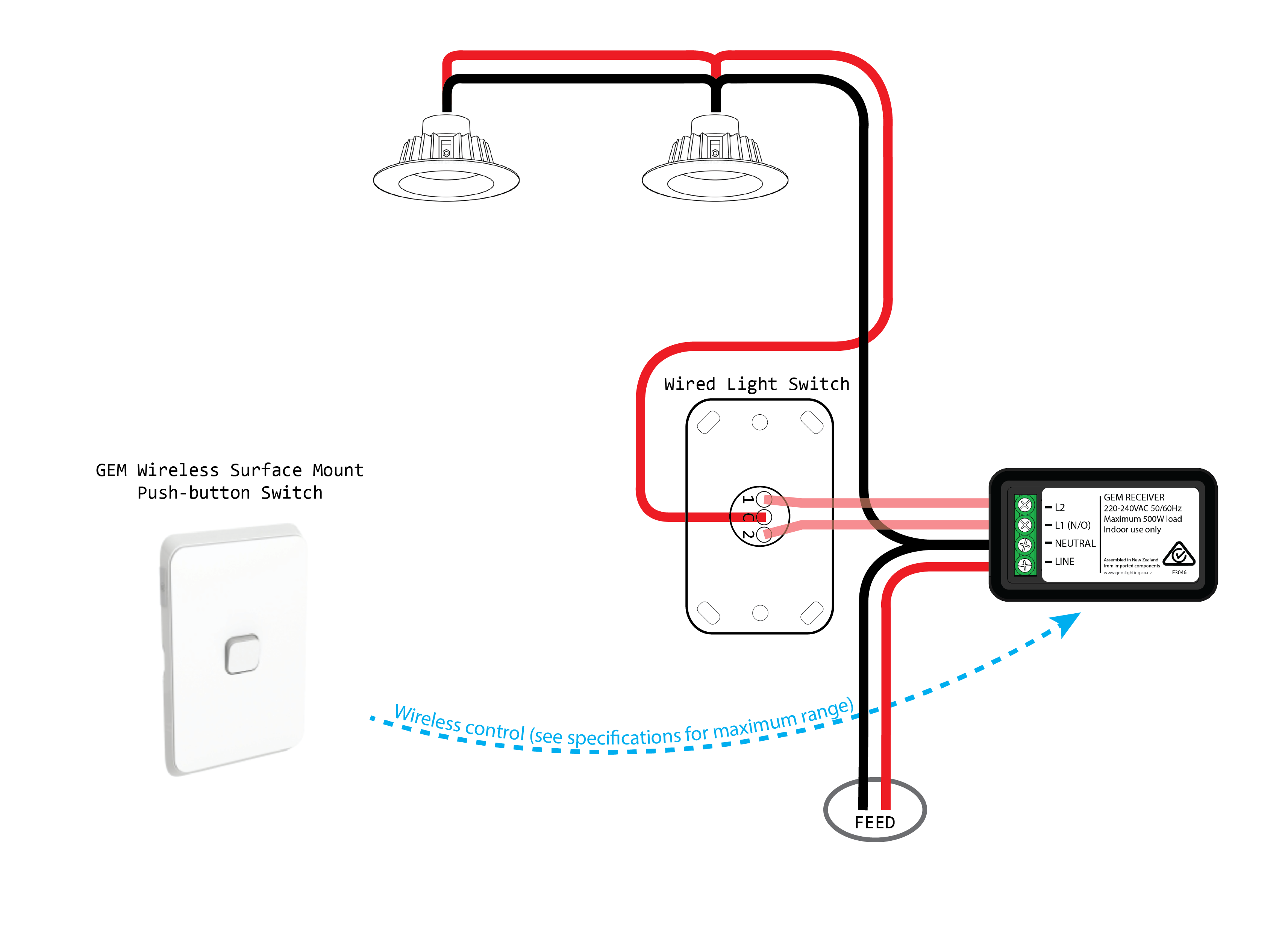

- Add on to an existing switch: Connect the receiver to your current switch to use both the physical switch and wireless switch in a 2-way arrangement.
Quick tip: Already have a light switch? You only need the 1-switch kit to add another location for a 2-way setup. View the wiring diagram here.
Key features:
- No WiFi needed.
- Switch and receiver come pre-paired.

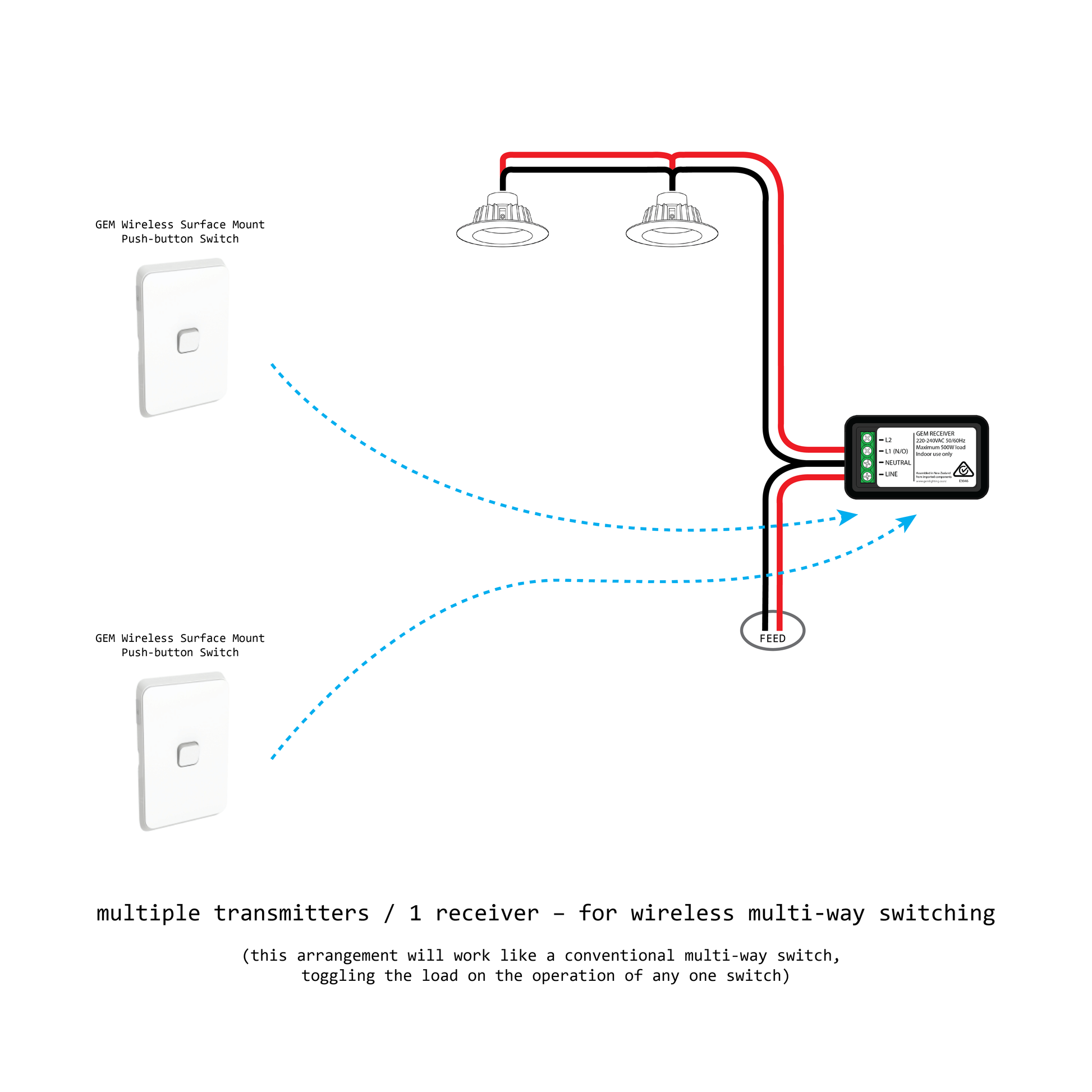

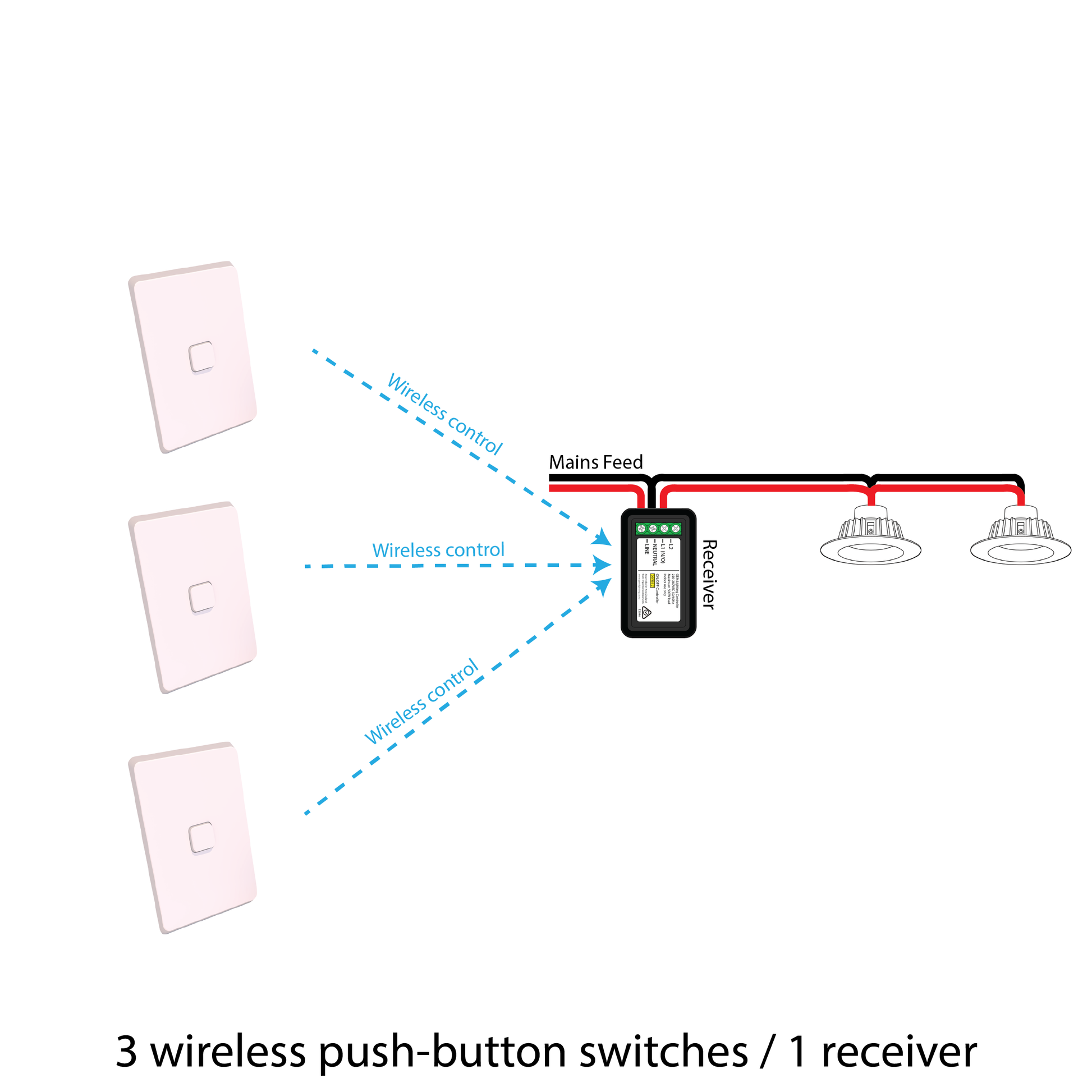

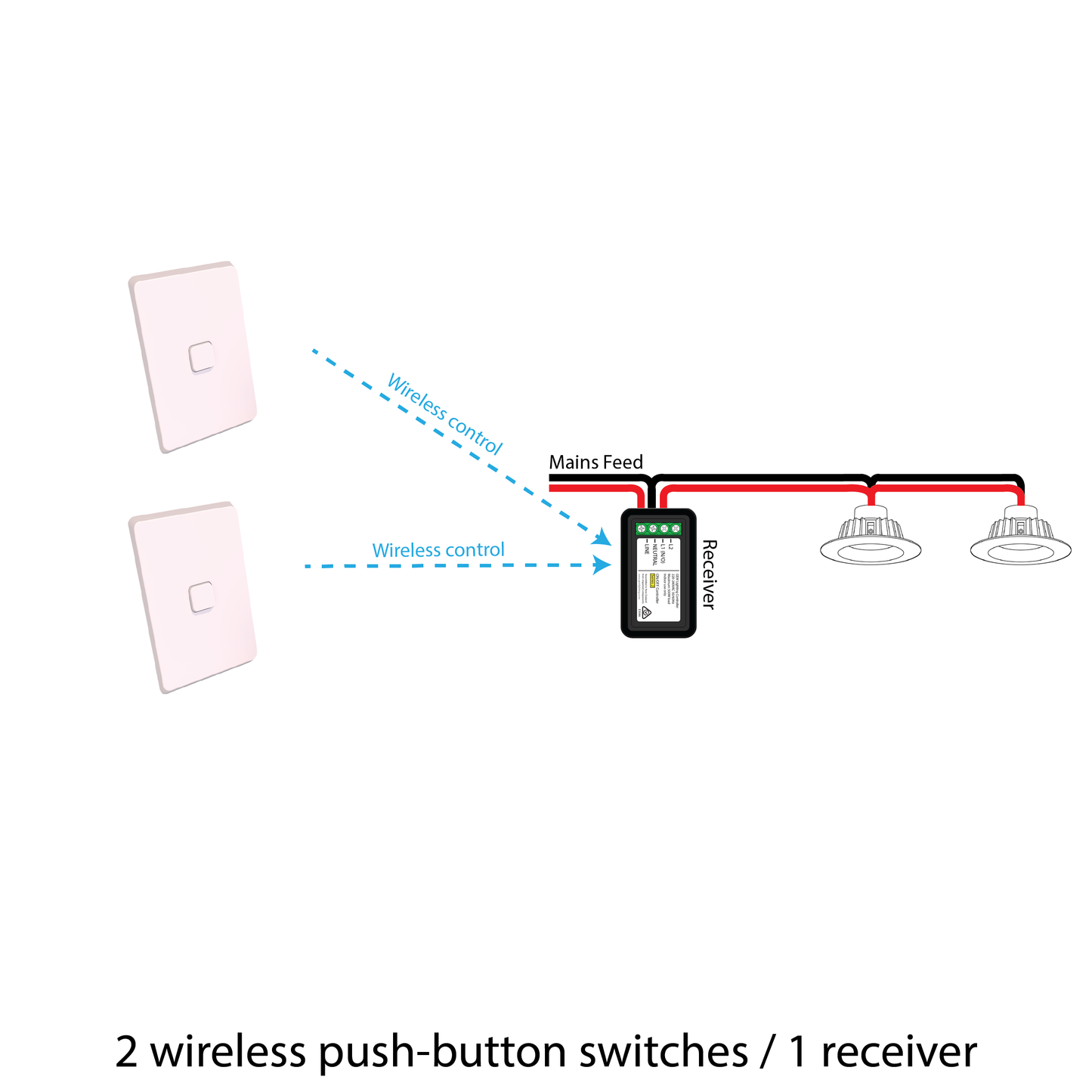

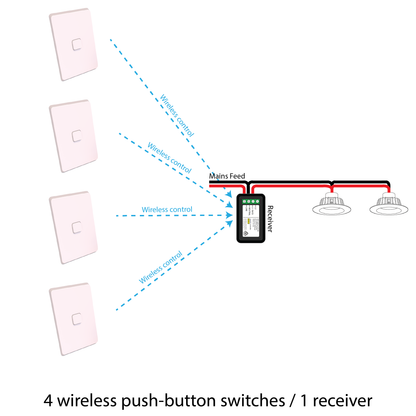

- Order multiple switches to switch lights from different locations.
- Signal works through walls up to 15 meters away.
- Use multiple kits in the same location without interference.
- Long battery life (5-6 years).
- Reliable connection with no interference from other wireless devices.
Tips for best use:
- Contactors and relays with AC coils can emit electromagnetic noise. If you intend to use such equipment nearby, ensure that there is at least 600mm separation from the receiver.
- Ambient temperature maximum is 45°C. Avoid enclosing the receiver with sources of heat like drivers, transformers, or luminaires.
- Metal sheeting can reduce the wireless range. Where possible, avoid using metal enclosures to house the units.
- Need to control gates or other momentary pulse loads? Contact our support team and we'll provide a special version designed for this purpose.
The GEM Surface Mount Switch Kit is designed and assembled in New Zealand. The product complies with the relevant AS/NZS standards and is fit for sale in Australia and New Zealand. All GEM products have a 2 year replacement warranty.
